New Type Non Woven Slitting Machine

casa/productos/New Type Non Woven Slitting Machine

New Type Non Woven Slitting Machine

New Type Non Woven Slitting Machine Aplicación del producto:

Descargar DOC




Product Application

ONL-XE1800 Double Rewinding Non Woven Slitting Machine is special for non woven fabric slitting. Also can slitting BOPP,PET,CPP,PVC and other plastic films.

Main Technical Variables

Type

ONL-XE1800



Slitting width

25-1800mm

More wider or more narrow can

Slitting speed

50-90m/min



Power supply

220v 50Hz



Total power

5 kw



Overall size

2400x1800x950mm



Features

1. Plat steel welding, firmly and balanced, more stable in the high-speed operation
2. chromium-plated steel pipe dynamic balance processing
3. Feeding with 3 inch air shaft, maximum feeding diameter is
800mm, with magnetic powder tension controller and edge automatically align device.
4.
Double rewinding with 3 inch air shaft and magnetic powder controller, easy to operate, maximum rewinding diameter is 800mm;rewinding aesthetic and neatly.
5. Cutter can use special blades or flat knife (cutter blades), 18mm-
1800mm adjustable.
6. Electric speed control system with manual adjustment, convenient and simple to operate.
7. Importing precise ball screw and slides, paralleled promoting the cutting width, importing AC motor step-less adjustment system to adjust and control the cutting speed, high-precise cutting, and the accuracy can be controlled within 0.1mm.
8. Standard configuration deviation-checking equipment system to further ensure the cutting precision.
9. Several kinds of cutting width and number of load settings, and with manual/automatic conversion function, making the operation more simple and convenient;
1
0. High speed feeding design, reducing the labor effectively and increasing the Production efficiency



Rewinding Part

Feeding Part

Cutting Paper Tube

Tube Put On Air Shaft

Adjust Knives Distance

Adjust Electric Eye Site

Adjust Magnetic Tension Device

Adjust Speed, Start Slitting

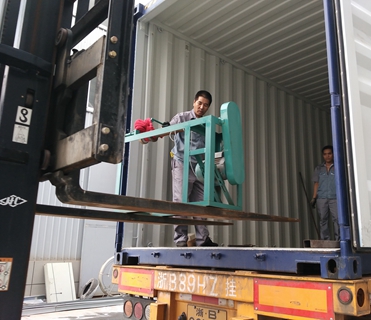

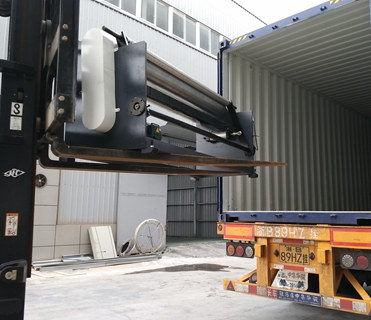

The following is OUR load container info for ONL-XE1800 Slitting Machine Feeding Part. Special data  would be supply after confirm your order.

Weight


1500KG



Packaging Details

1.no package

2.plastic film with pearl cotton

  3.wooden pallet as your request




Pipe cutting machine Delivery

Weight


100KG



Packaging Details

Standard Package for the circular cutter












Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.

Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support

After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
