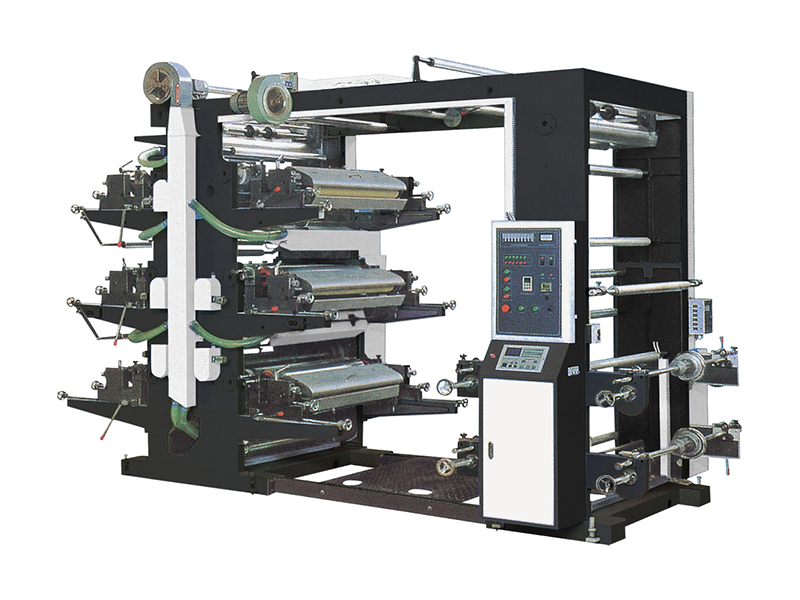

YT-6 Six Color Flexographic Printing Machine

casa/productos/YT-6 Six Color Flexographic Printing Machine

YT-6 Six Color Flexographic Printing Machine

YT-6 Six Color Flexographic Printing Machine Aplicación del producto:

Descargar DOC

Product Application

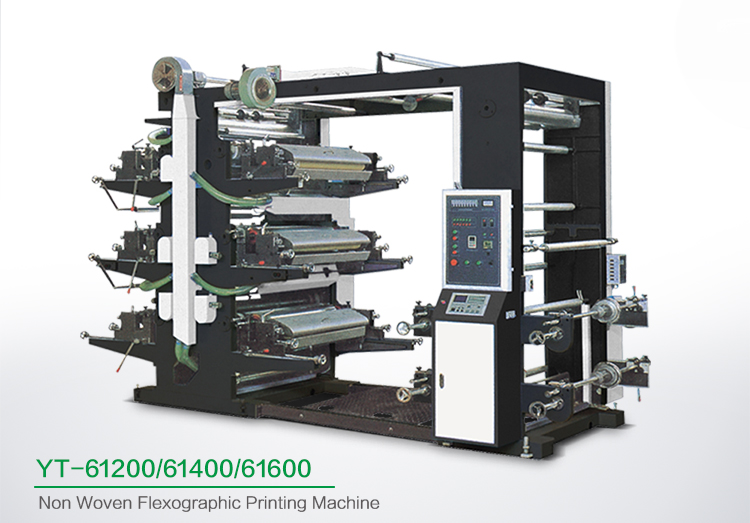

YT-61200/61400/61600 Non Woven Flexographic Printing Machines (6 color)

This machine is ideal equipment for non woven fabric printing. Adopt rubber plate or resin plate to printing non woven fabric with water-based Ink. More eco friendly and machine using automatic magnetic tension control system to ensure uniform tension. roll to roll printing supply more higher effective capacity.

Main Technical Variables

Type

YT-61200

YT-61400

YT-61600

Printing Width

1160MM

1360MM

1560MM

Printing Thickness

100-940MM

100-940MM

100-940MM

Plate Thickness

2.38 MM

2.38 MM

2.38 MM

Speed

10-50M/MIN

10-50M/MIN

10-50M/MIN

Overall Size

5000X2200X2500

5000X2400X2500

5000X2600X2500

Procedure

1. Figure out the fabric width when you get a bag order.
2. Purchase the special width fabric rollers or slitting the general one into right width.
3. Printing according to your customers'
requirement.

Flexographic Printing Effect

Screen Printing Effect

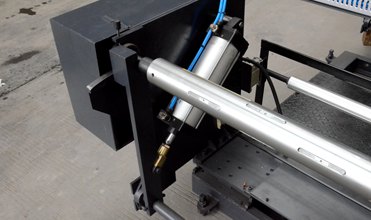

Feeding Part

Function:

Air Shaft Winding

Automatic Loading

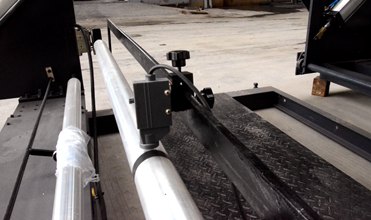

Correcting Deviation Device

Using photoelectric eye to correct deviation automatically.

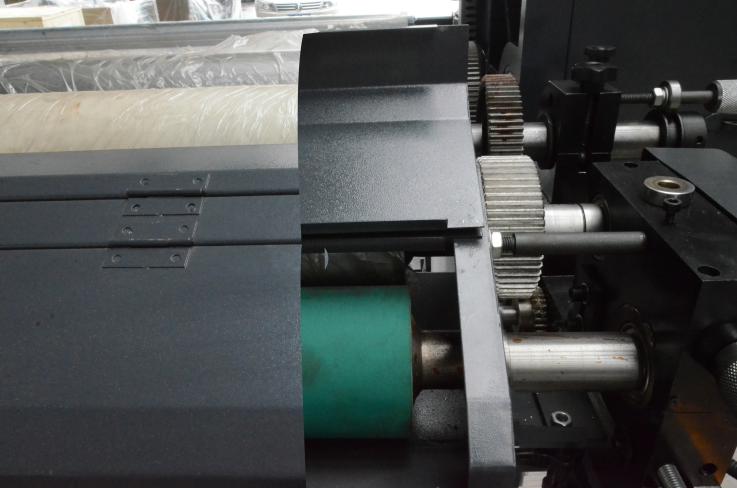

Printing Unit

Group: Six

Printing Way: Plating roll, Plate roll, Net roll, Peel roll

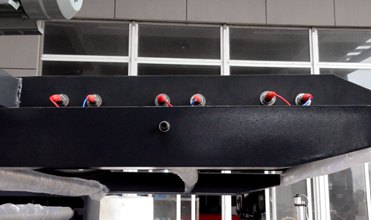

Heating And Dryer Unit

Fan drive and heating

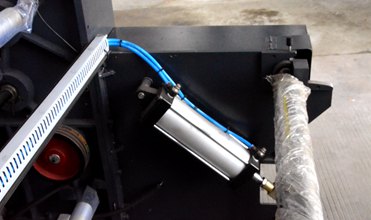

Rewinding Unit

Air Shaft Rewinding

Automatic Up And Down Loading

Magnetic Tension Control Device


YT-21200 Flexo Printing Machine


Size


5000X2200X2500


Weight
3700KG

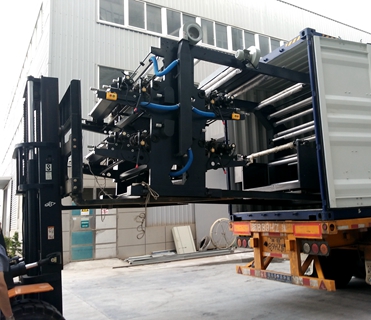

Packaging

Details


Plastic film





Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
