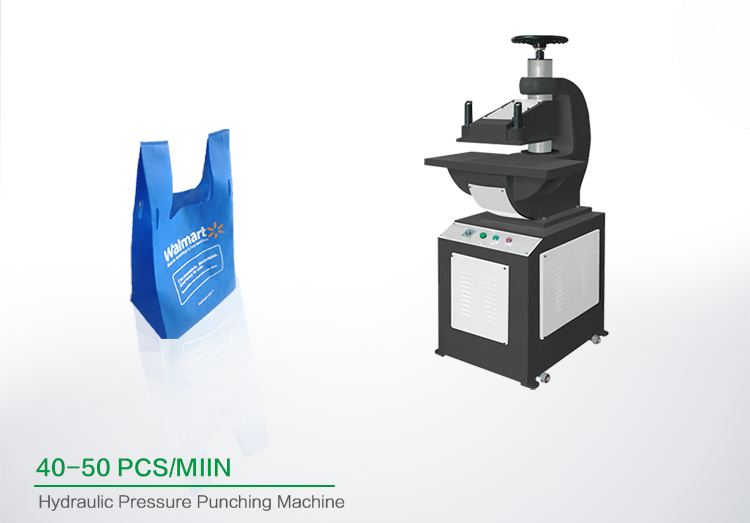

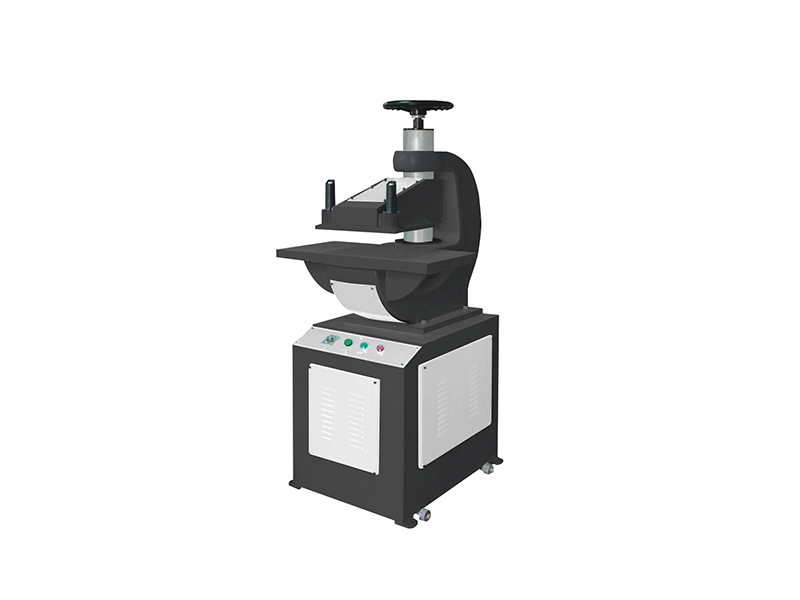

DSA-10T Hydraulic Pressure Punching Machine

Accueil/des produits/DSA-10T Hydraulic Pressure Punching Machine

DSA-10T Hydraulic Pressure Punching Machine

DSA-10T Hydraulic Pressure Punching Machine Application du produit:

Télécharger DOC


Product Application

Hydraulic press non woven T-shirt bag punching machine

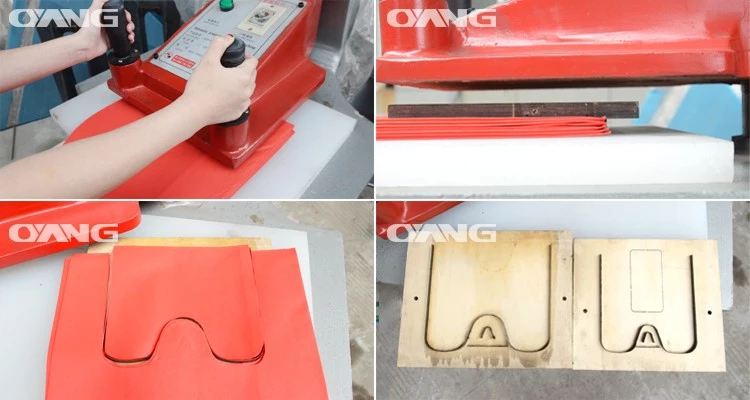

This machine is suitable for non woven bag month punching. Using different cutting mouldto make W cut or U cut non woven bag by manual.

Main Technical Variables

Model

DSA-10T

Output

40-50 PCS/MIN

Power Of Motor

1.1 KW

Working Pressure

10T

Linking Piece Stroke

5-75 MM

The Distance Between Working Plate And Linking Piece Stroke

65-150 MM

Weight

350 KG

Overall Size

650X750X1350 MM


Capacity

Model

Hydraulic punching machine

Automatic T-shirt punching machine

Operation Method

By Manual

Automatic

Output

40-50 pcs/min

30-40 pcs/min

Worker

Need two worker (One for bag making machine, one for punching machine)

Need one worker (Connect punching machine with bag making machine)

 Package


   Size

 650 (L) *750 (W) *1350 (D) MM


 Weight


350KG

 Packaging

   Details


The normal package is plastic film

Other package according to customers special request.





Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
