ONL-STR1200 Non Woven Sheet To Roll Sealing Machine

Accueil/des produits/ONL-STR1200 Non Woven Sheet To Roll Sealing Machine

ONL-STR1200 Non Woven Sheet To Roll Sealing Machine

ONL-STR1200 Non Woven Sheet To Roll Sealing Machine Application du produit:

Télécharger DOC

Product Application

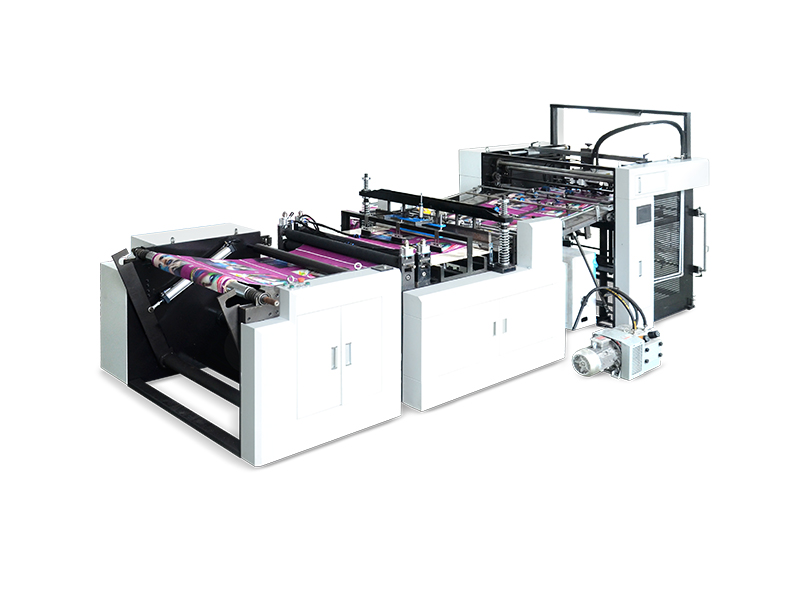

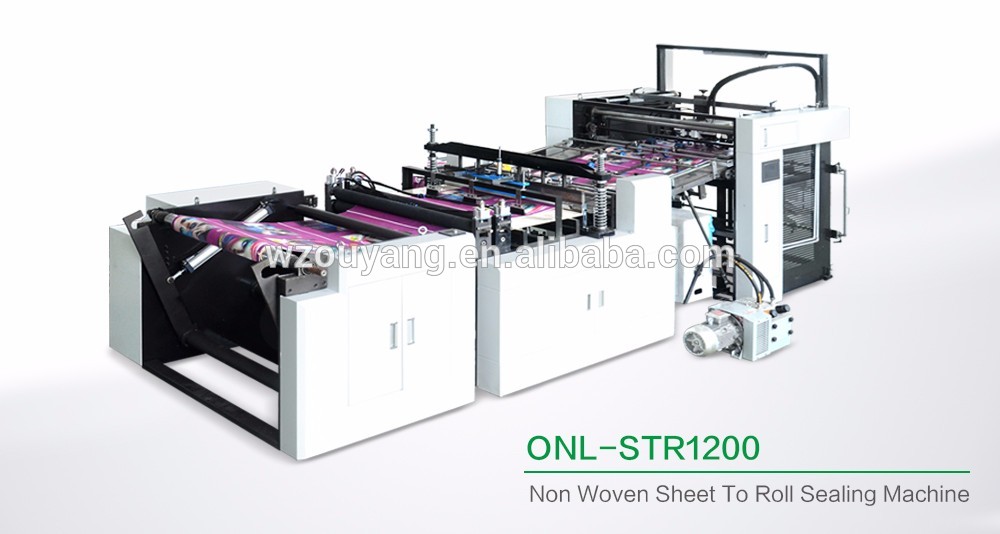

ONL-STR1200 Non Woven Sheet To Roll Sealing Machine

This machine is suitable for non woven sheet to roll sealing. Put the printed non woven sheet on this machine, achieve small batch order flow production.

It is Allwell 2017 new design, special for customer who have non woven sheet to sheet printing machine and prepare to make bag through Leader machine.



Type

ONL-STR1200

More Wide Can Be Customized

Optimal Fabric Thickness

90-120GSM

More thin or thick tell us please

Speed

30PCS/MIN



Power Supply

380V 50Hz

Can change according your factory

Total Power

13KW



Overall Size

5800X2000X2150MM



About the usage of this machine

The finished non woven fabric roller can been used by Leader- One time forming non woven box bag making machine. The sheet have been printed before sheet to roll sealing. After sealing to roll, it can be used by Leader to make bag online.

Bag MOQ limit like under 5,000 or 10,000 pcs bag order, some bag manufacturers can not accept it as the more higher cost for online printing and online bag making. Small batch order is one of the common problems that customers usually face.

This machine can solve this problem, achieve small batch bag order can be accepted. Non woven sheets with different printing and same size can sealing one roll. Then, using Leader to make one time forming non woven box bag.

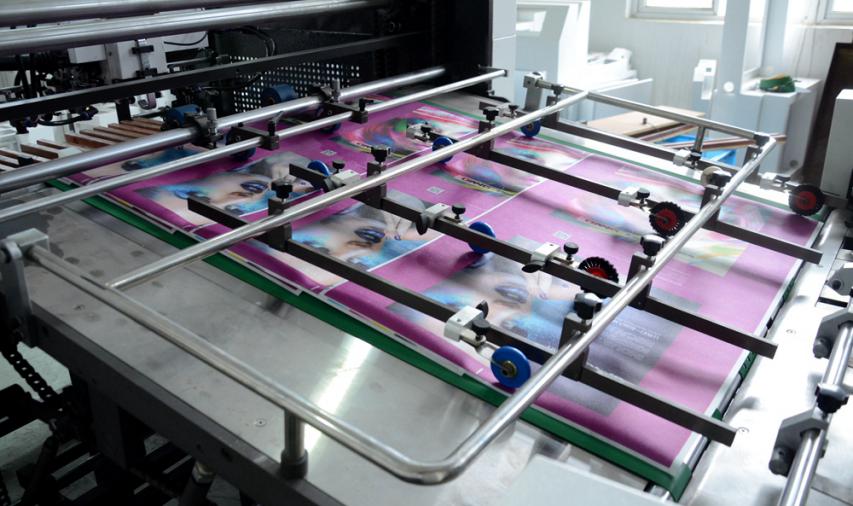

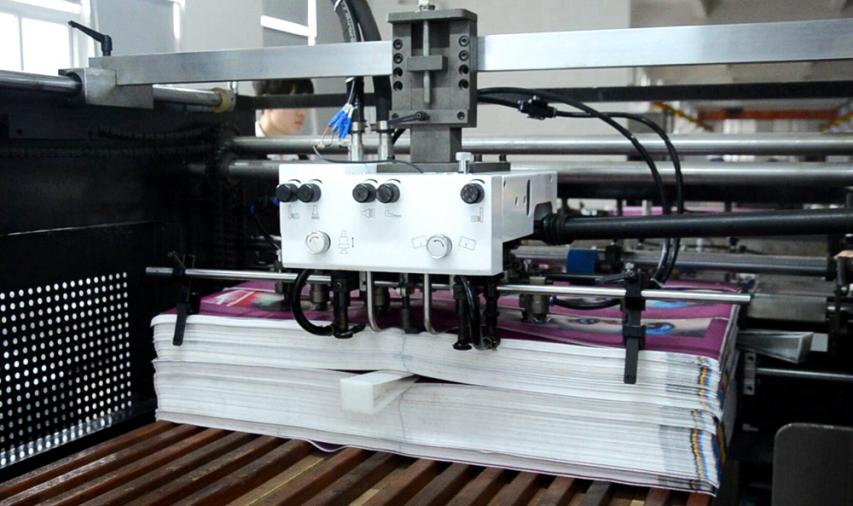

Feeder Feeding

Feeder control the sheet feeding one by one

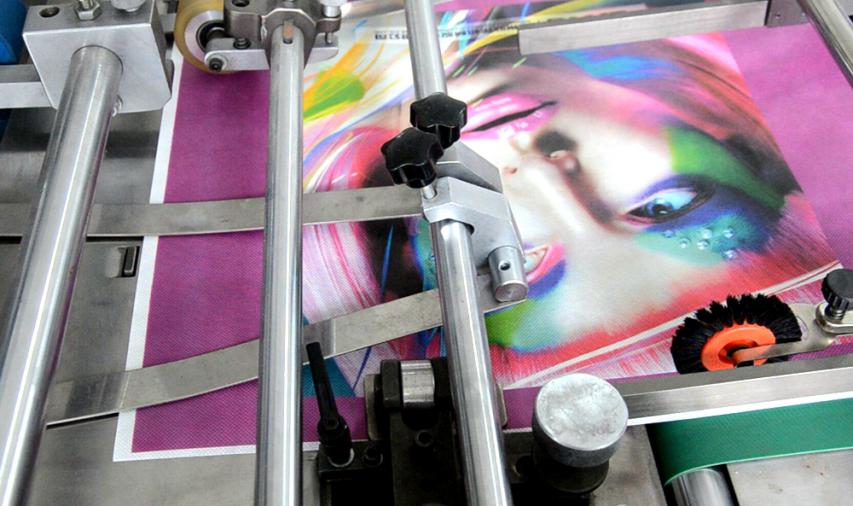

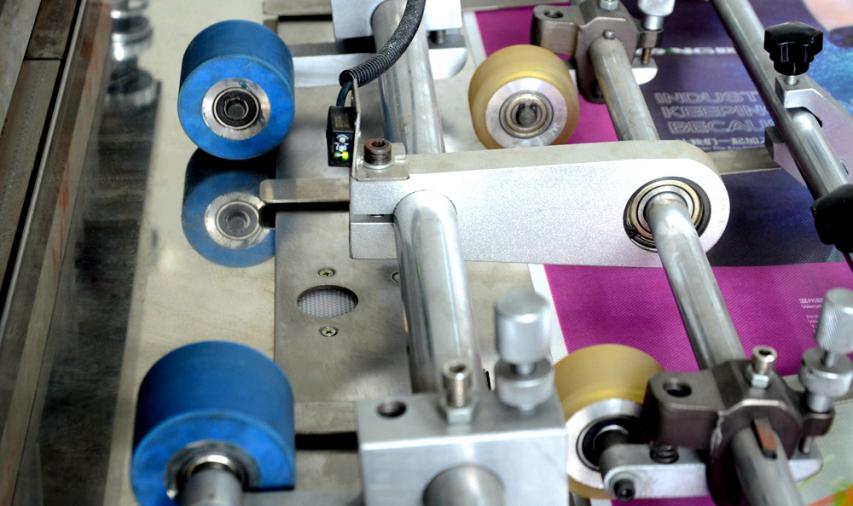

Roller Press & Convey

Adjustable Roller Press The Sheet with Convey belt

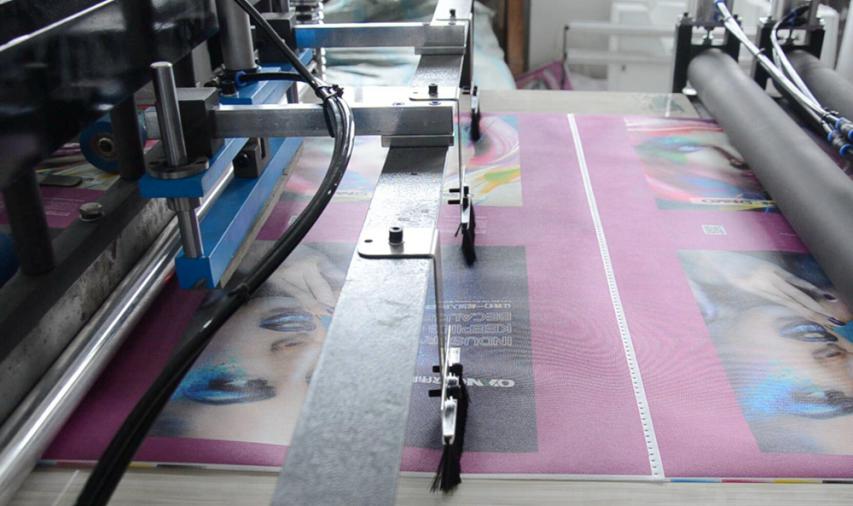

Sheet Deviation Correcting

Guarantee the sheet side sealing with free error



Double Auto shutdown device

Guarantee sealing accurate. machine would shutdown when the sheet not running as requested.



Sheet Side Sealing

Max sealing width 1200mm in standard. More wider can contact us to customized

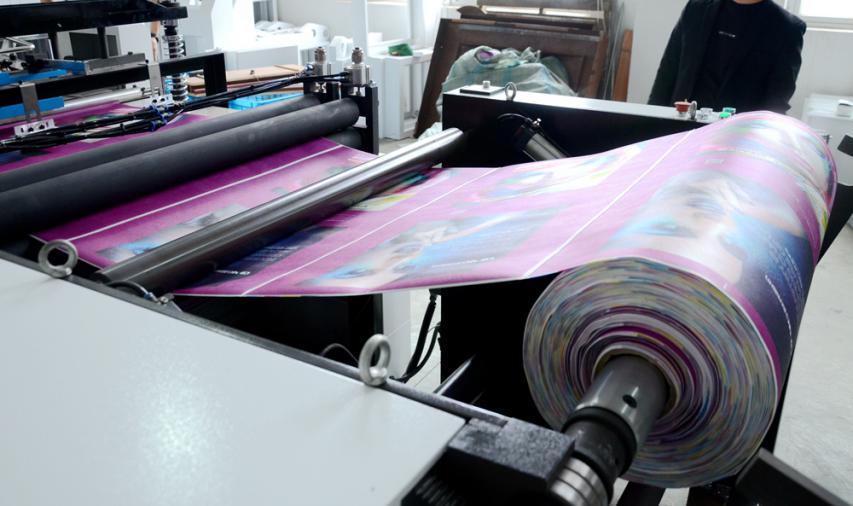

Rewinding

With Automatic Tension Control System, Guarantee the fabric roller in same tension without stretching






Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
