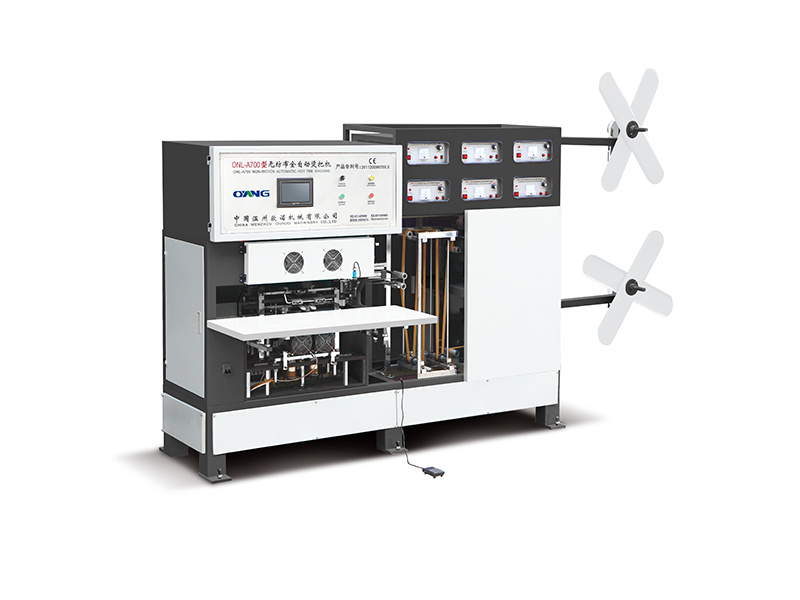

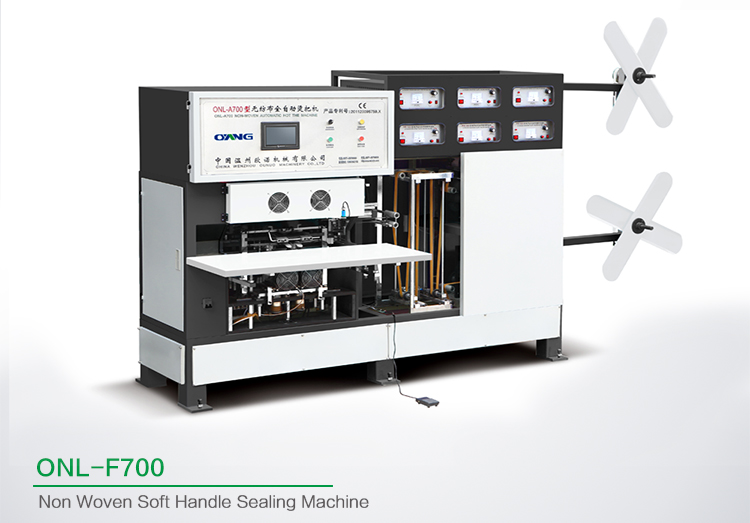

ONL-F700 Full Automatic Soft Handle Sealing Machine

Accueil/des produits/ONL-F700 Full Automatic Soft Handle Sealing Machine

ONL-F700 Full Automatic Soft Handle Sealing Machine

ONL-F700 Full Automatic Soft Handle Sealing Machine Application du produit:

Télécharger DOC

Product Application

ONL-F700 Double side one time nonwoven soft handle sealing machine

This machine is new design of non woven handle making machine. It need one worker to operate soft handle sealing. One time finished one bag handle (double side)

Type

ONL-G700

Fabric Width

50-60 MM

Handle Width

25-30 MM

Handle Length

370-600 MM

Fabric Thickness

35-100GSM

Loop Handle Thickness

60-120GSM

Speed

20-30 PCS/MIN

Power Supply

220V 50Hz

Overall Size

3500 x 800 x 1650mm

CAPACITY

Machine Type

ONL-G Handle Sealing Machine

ONL-F Handle Sealing Machine

0NL-XB/XC Bag Making Machine

Handle Process Way

By Manual

By Manual

Online Making

One Time Single Side

One time double side

One Time Single Side

Capacity

10-20 PCS/MIN

20-30 PCS/MIN

30-80PCS/MIN

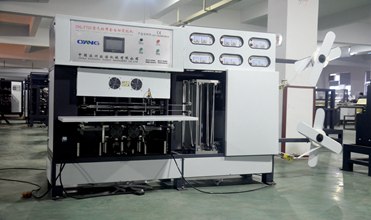

Complete Machine



Machine Parts

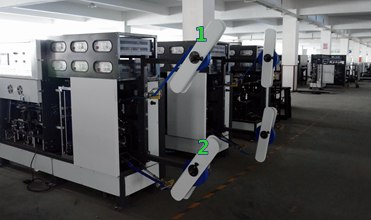

Name: Feeding part
Brand: Allwell
Double Feeding Part, need 50mm width non woven fabric roller.

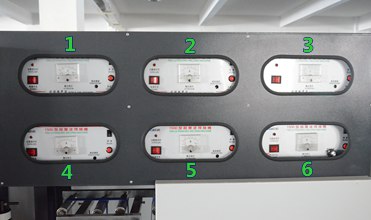

Ultrasonic Parts

Brand: OUNUO

ONL-F model Handle sealing machine total have
Six sets ultrasonic



Machine Parts

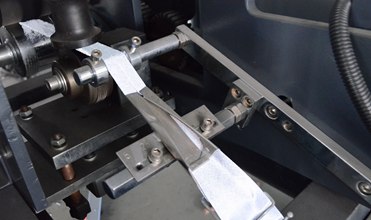

Name: Handle folding and sealing
Brand: OUNUO

There have Two ultrasonic. One feeding part have one set. After through folding, sealing the non woven handle.


Machine Parts

Name: Handle Sealing Part
Brand: OUNUO

There have Four sets
ultrasonic for two side - four spot sealing.

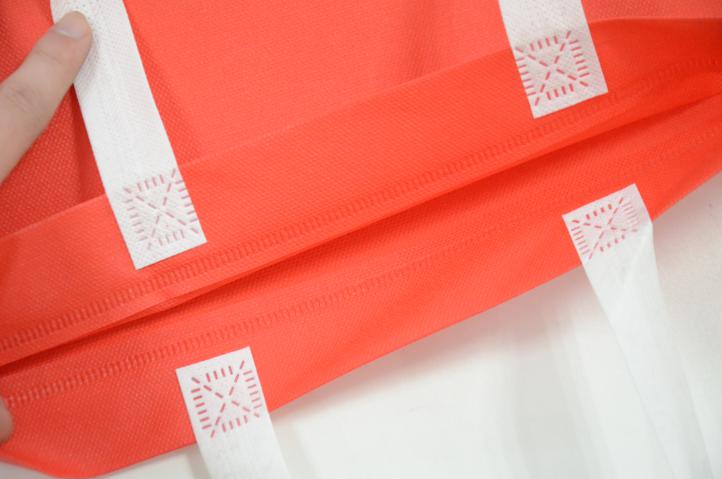

Ultrasonic handle sealing

Double side one time finished

Strong
Neat
Convenient

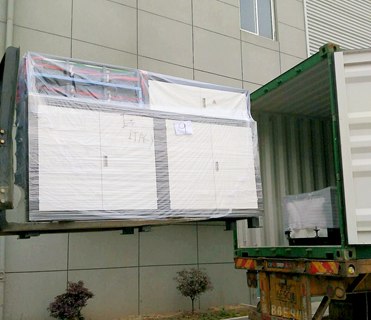

The following is OUR load container info for ONL-F700 soft handle sealing machine. Special data  would be supply after confirm your order.


Container

One 20'ft container


Weight


800KG

 Packaging

   Details


The normal package is plastic film.The wooden box or other package according to customers special request.



Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
