Product Application

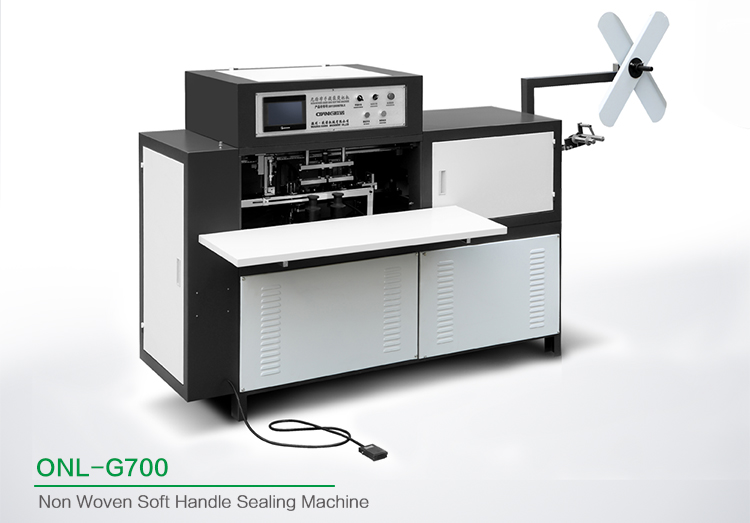

ONL-G700 Single Side One Time Nonwoven Soft Handle Sealing Machine
This machine is new design of non woven handle making machine. It need one worker to operate soft handle sealing. One time finished one handle (one side), one bag have two side.
Type |
ONL-G700 |
Fabric Width |
50-60 MM |
Handle Width |
25-30 MM |
Handle Length |
370-600 MM |
Fabric Thickness |
35-100GSM |
Loop Handle Thickness |
60-120GSM |
Speed |
10-20 PCS/MIN |
Power Supply |
220V 50Hz |
Overall Size |
2650 x 1090 x 1650mm |
CAPACITY
Machine Type |
ONL-G Handle Sealing Machine |
ONL-F Handle Sealing Machine |
0NL-XB/XC Bag Making Machine |
Handle Process Way |
By Manual |
By Manual |
Online Making |
One Time Single Side |
One time double side |
One Time Single Side |
|
Capacity |
10-20 PCS/MIN |
20-30 PCS/MIN |
30-80PCS/MIN |
|

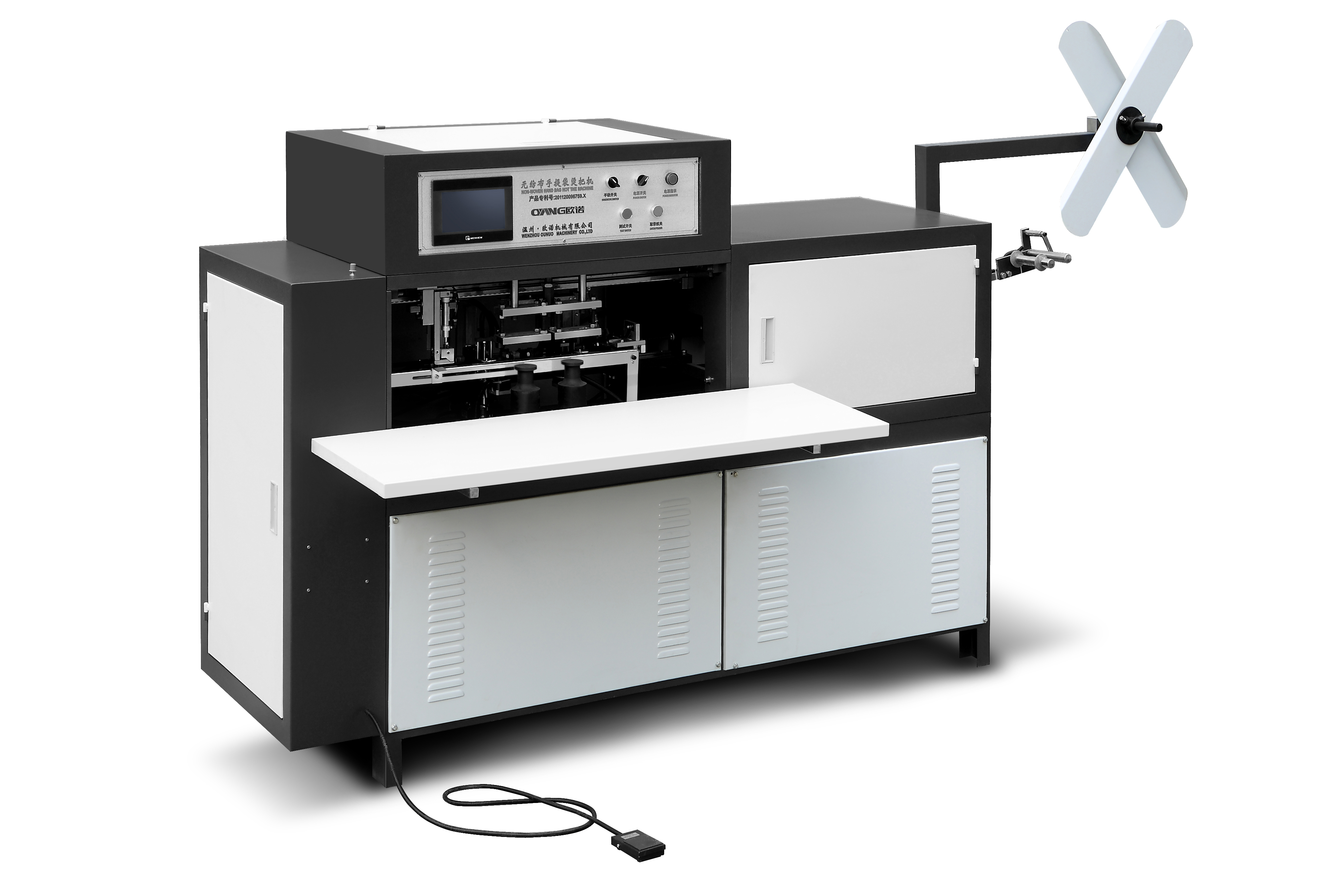

Complete Machine
|
Machine Parts
Name:

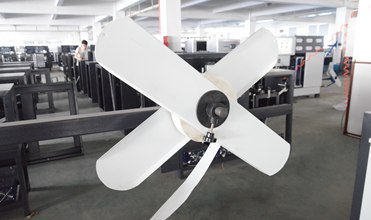

Feeding part
|
|
|

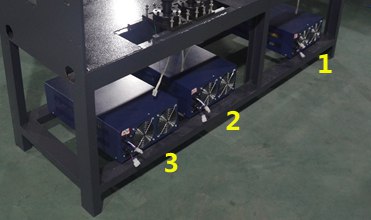

Ultrasonic Parts
Brand: OUNUO
|
Machine Parts

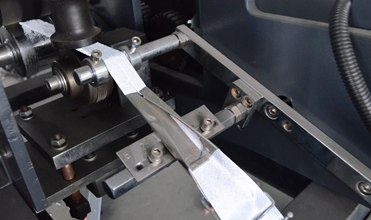

Name: Handle folding and sealing
|
|
|
Machine Parts

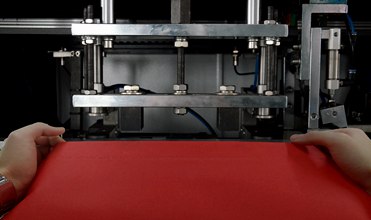

Name: Handle Sealing Part
|

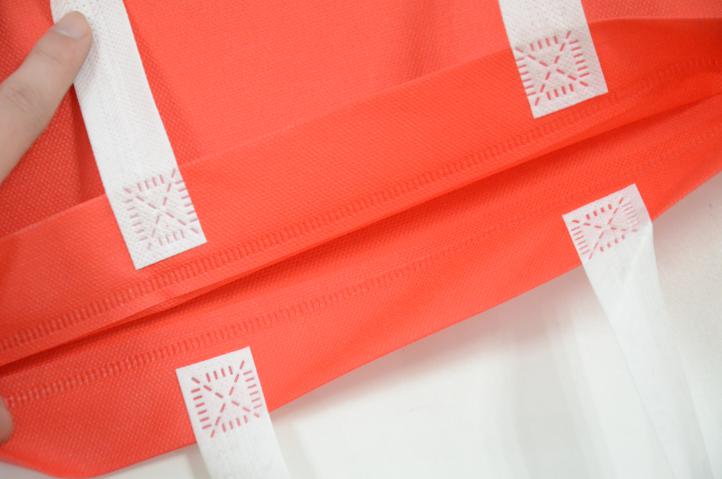

Ultrasonic handle sealing Single side one time finished
|
|
The following is OUR load container info for ONL-G700 soft handle sealing machine. Special data would be supply after confirm your order
|
|
Container |
One 20'ft container
|
Weight |
500KG |

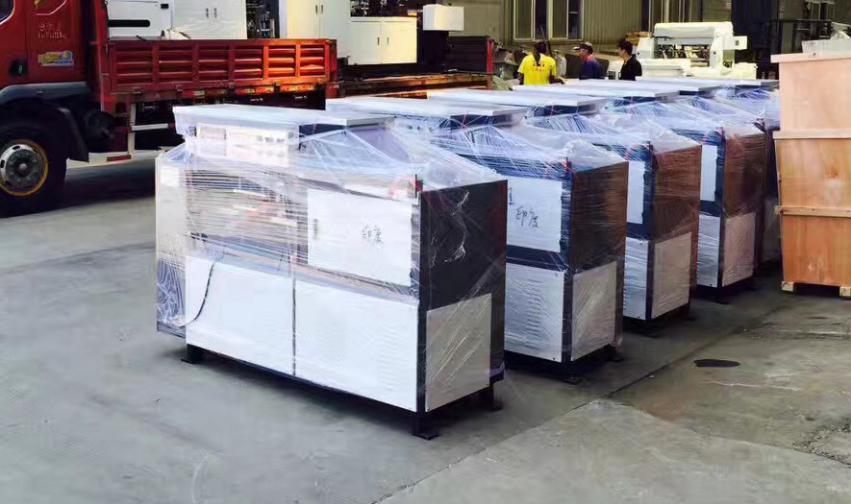

Packaging Details
|
The normal package is plastic film.The wooden box or other package according to customers special request.
|
Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.
We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.
Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.
Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.
Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.
2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.
Pre-Sales One-stop Service
* Inquiry and consulting support
* Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support
After-Sales Service
* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas
