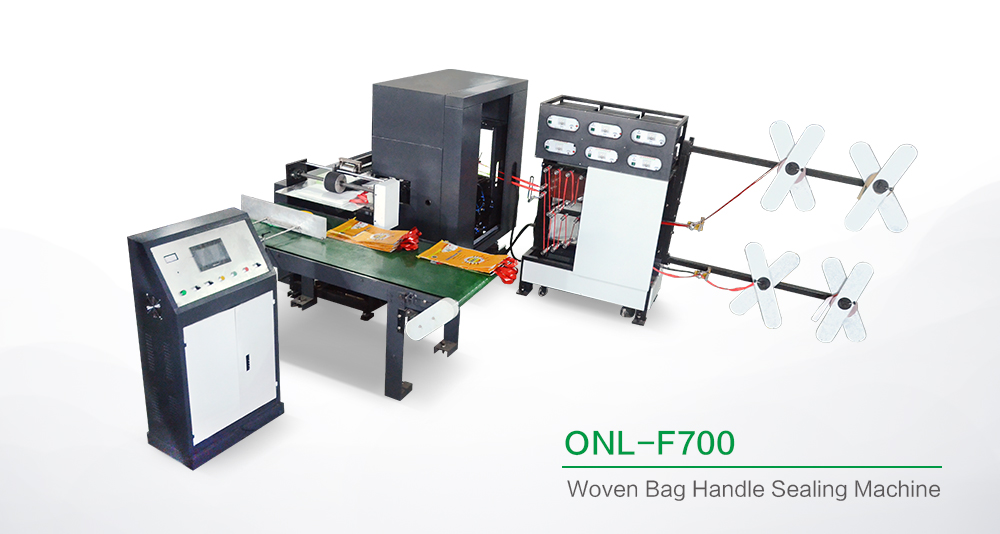

ONL-F700 PP Woven Bag Handle Sealing Machine

Accueil/des produits/ONL-F700 PP Woven Bag Handle Sealing Machine

ONL-F700 PP Woven Bag Handle Sealing Machine

ONL-F700 PP Woven Bag Handle Sealing Machine Application du produit:

Télécharger DOC

Product Application

PP Woven Bag Handle Sealing Machine

This machine is new type one time forming soft handle sealing machine which is improved according to many customers usage situation and feedback we collect. We design it in 2017. It takes woven fabric as material, can make handle on woven bag by manual. Machine adopts the unique structure, abandon the rotating cylinder, The control center is Panasonic PLC, using step motor to feed, precision delivery, combining human-machine interface is complete set the parameters, more easy operation.

 Machine Technical Data

SN

Item

Specification

1

Handle Length

370-600mm

2

Handle Width

25mm (standard)

3

Thickness

60-100gsm

4

Max feeding diameter

600mm

5

Operate way

Manual operate

6

Capacity

30pcs/min

7

Power supply

220V 50Hz

8

Total power

15KW

9

Overall size

L 4850* W 4000* H 1850mm

10

Weight of Machine

600KGS

CAPACITY



Machine Type



ONL-G Handle Sealing Machine



ONL-F Handle Sealing Machine

ONL - F700 Full Automatic Woven Bag Handle Sealing Machine

Handle Process Way

By Manual

By Manual

By Manual

One Time Single Side

One time double side

One time double side

Capacity

10-20 PCS/MIN

20-30 PCS/MIN

30-80PCS/MIN

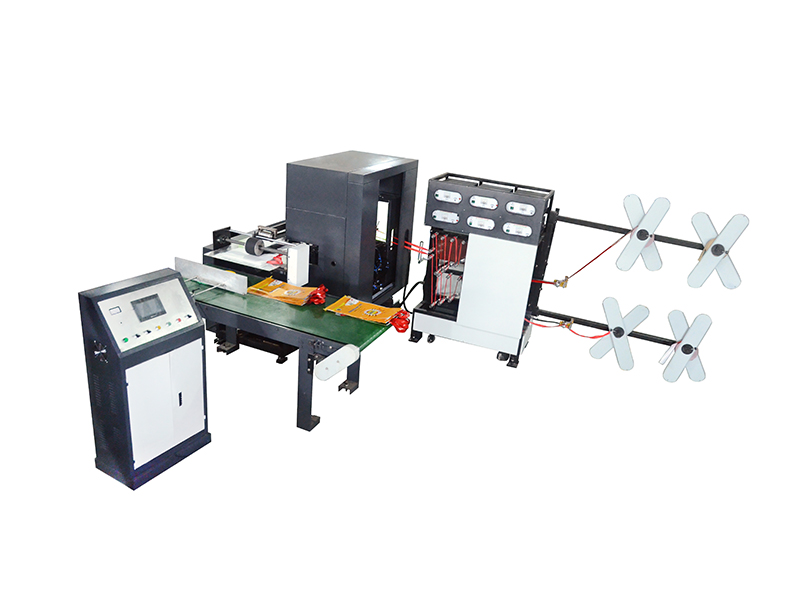

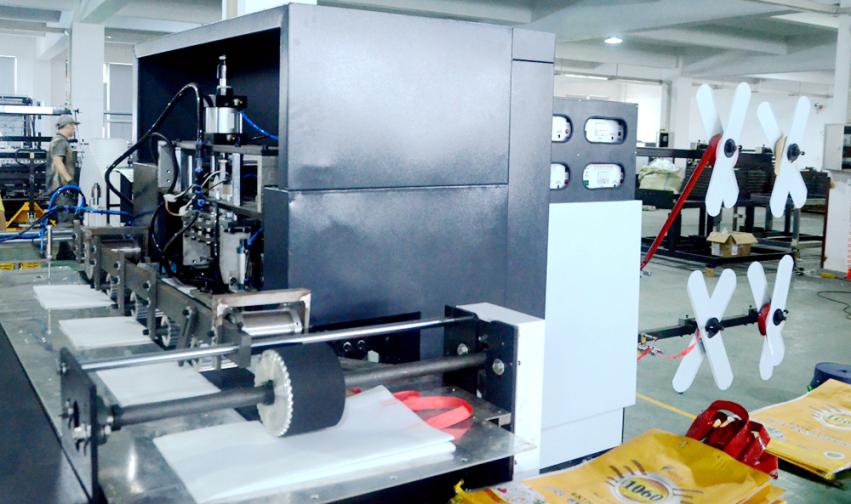

Complete Machine



Machine Parts

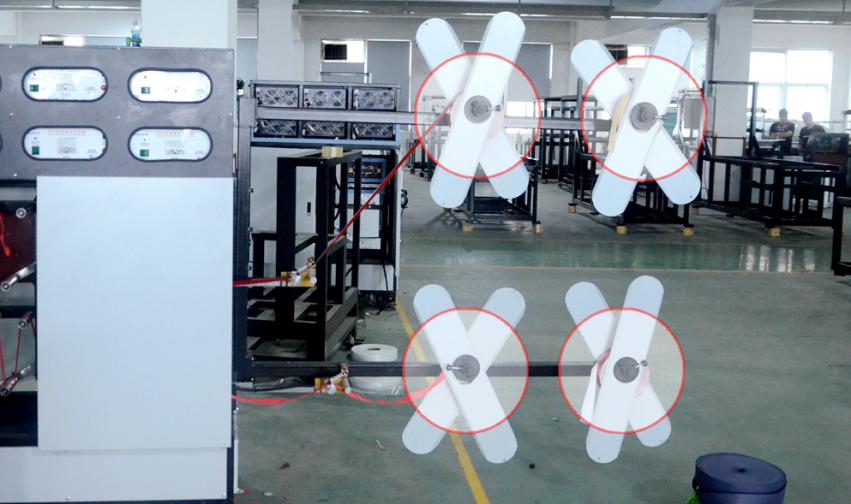

Name: Feeding part
Brand: Allwell
Double Feeding Part, need 50mm width non woven fabric roller.

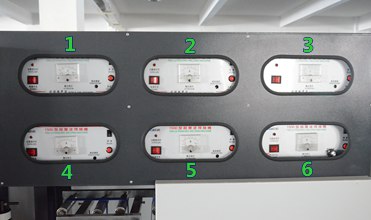

Ultrasonic Parts

Brand: OUNUO

ONL-F model Handle sealing machine total have
Six sets ultrasonic



Machine Parts

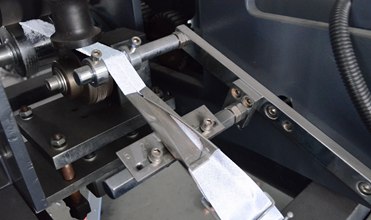

Name: Handle folding and sealing
Barand: OUNUO

There have two ultrasonics. One feeding part have one set. After through folding, sealing the non woven handle.



Machine Parts

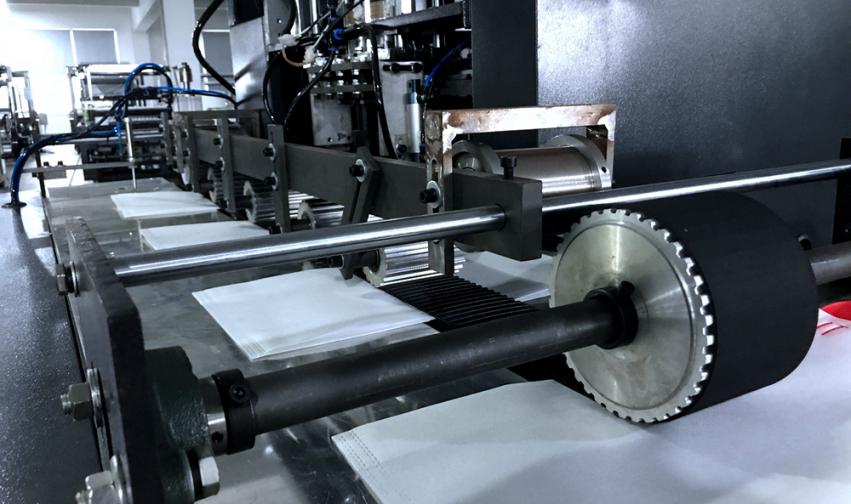

Name: Handle Sealing Part
Brand: OUNUO

There
is Belt

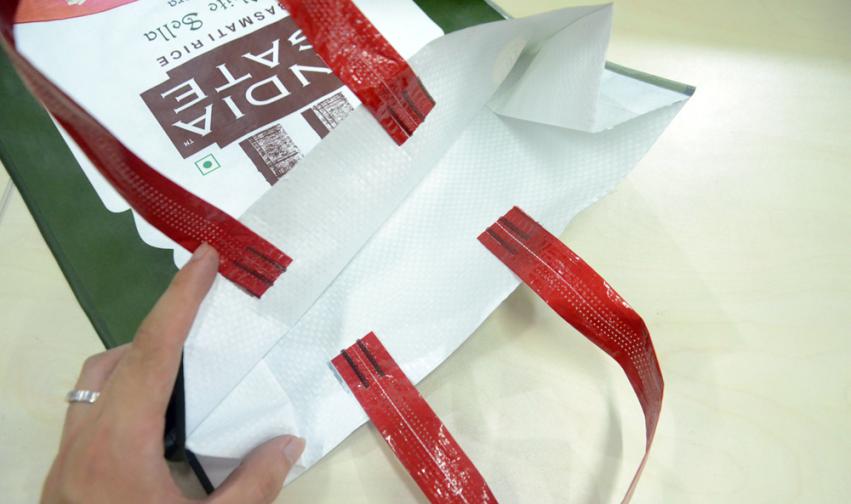

Ultrasonic handle sealing

Double side one time finished

Strong
Neat
Convenient





Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
