Double Station Twisted Paper Rope Machine

home/products/Double Station Twisted Paper Rope Machine

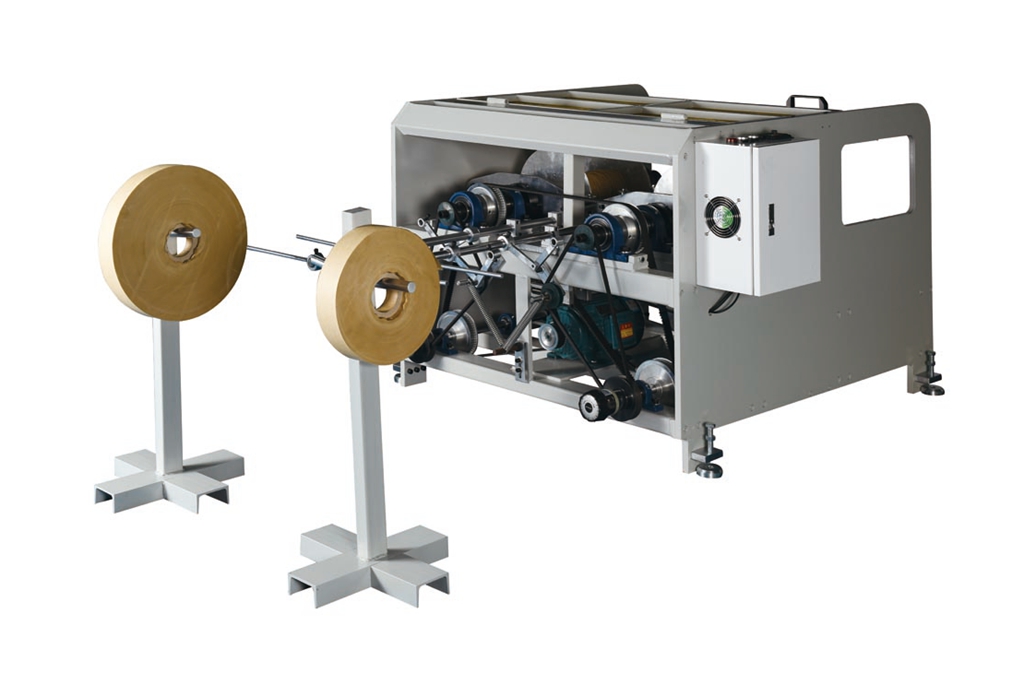

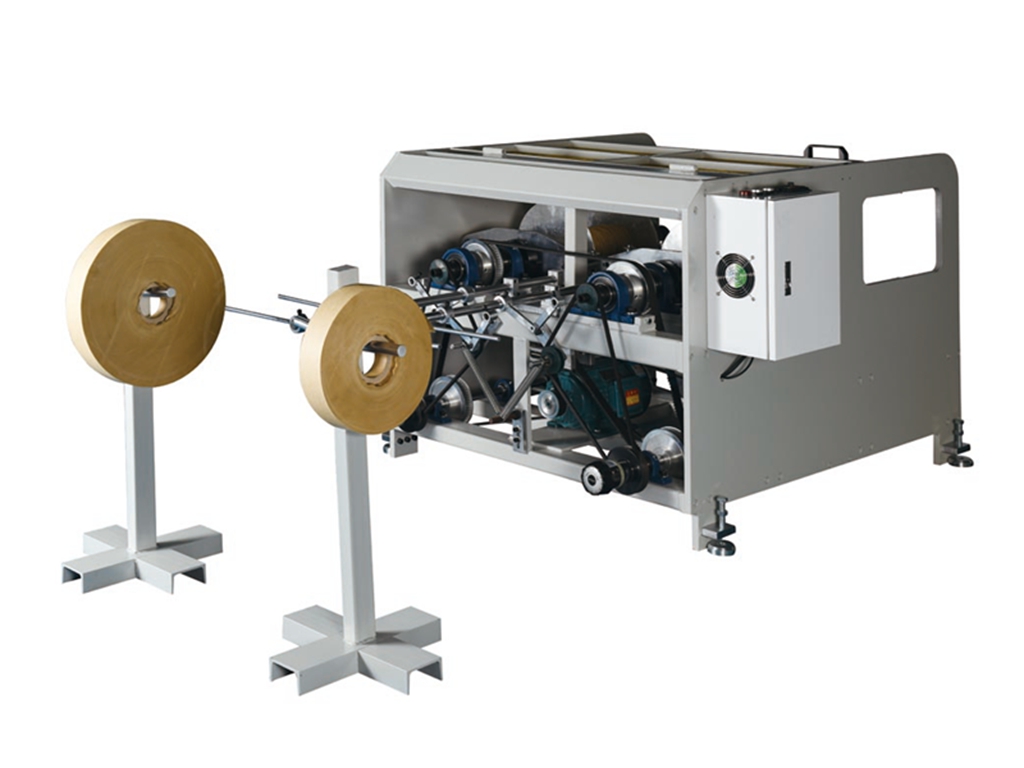

Double Station Twisted Paper Rope Machine

Double Station Twisted Paper Rope Machine Product Application:

This machine uses a motor to drive two paper rope groups to produce paper ropes. High speed and high production efficiency, it is the first choice for paper rope manufacturers. This machine is mainly used with high-speed hand-drawing machines and paper bag machines, which can quickly produce round paper ropes, so as to provide raw materials for high-speed hand-drawing machines and paper bag machines. This machine uses rolls of kraft paper as raw materials. Through the high-speed rotation of the machine shaft, the paper strips are twisted into paper ropes and stored in the form of rope rolls. Customers can adjust the diameter and tightness of the paper rope to meet the production needs of different specifications.

Download DOC


Product Application


This machine uses a motor to drive two paper rope groups to produce paper ropes. High speed and high production efficiency, it is the first choice for paper rope manufacturers. This machine is mainly used with high-speed hand-drawing machines and paper bag machines, which can quickly produce round paper ropes, so as to provide raw materials for high-speed hand-drawing machines and paper bag machines. This machine uses rolls of kraft paper as raw materials. Through the high-speed rotation of the machine shaft, the paper strips are twisted into paper ropes and stored in the form of rope rolls. Customers can adjust the diameter and tightness of the paper rope to meet the production needs of different specifications.


Main Technical Variables


Core Diameter of Raw Rope Roll Φ76 mm(3'')
Max. Paper Rope Diameter 800mm
Paper Roll Width 20-100mm
Paper Thickness 20-60g/
Paper Rope Diameter Φ2.5-6mm
Max. Rope Roll Diameter 300mm
Max. Paper Rope width 300mm
Production Speed 30-40m/min
Power Requirements 220V
Total Power 1.5KW
Total Weight Approx.300KG
Overall Dimension L1580*W1440*H930mm

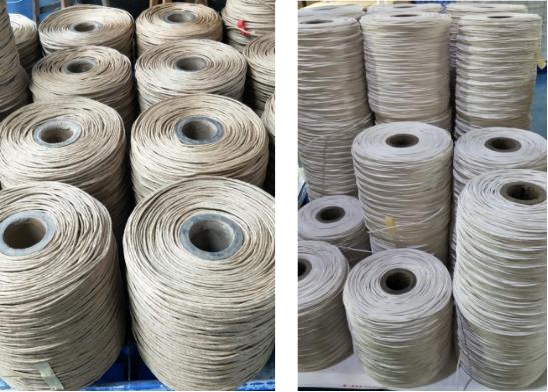

Sample Picture
