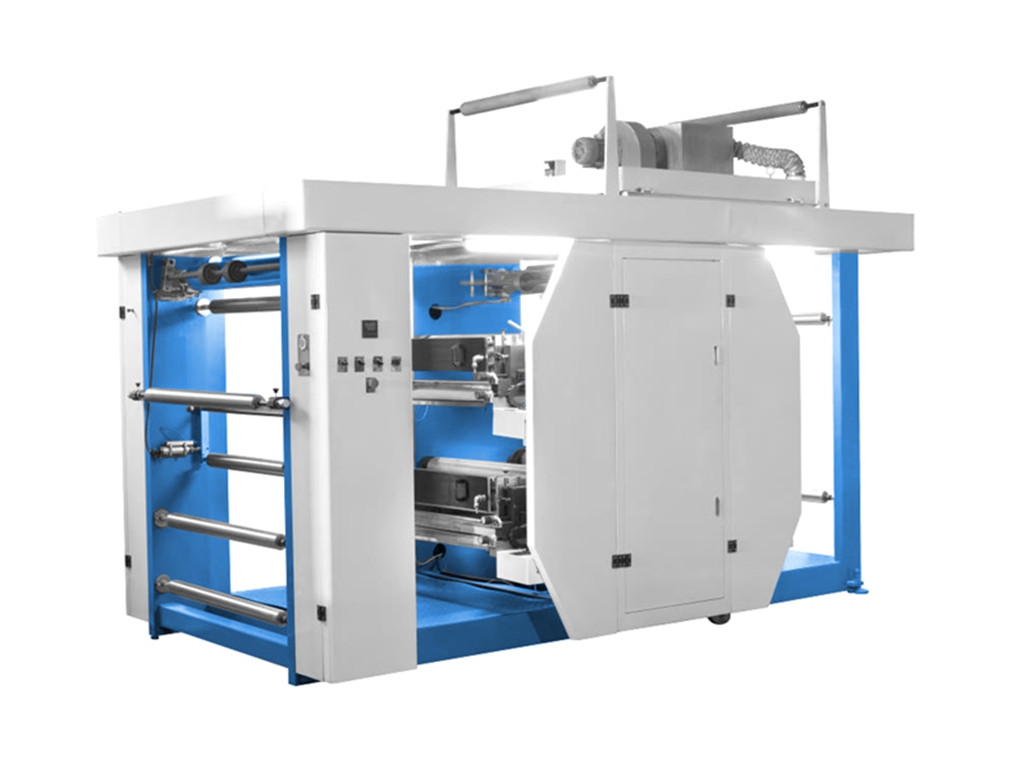

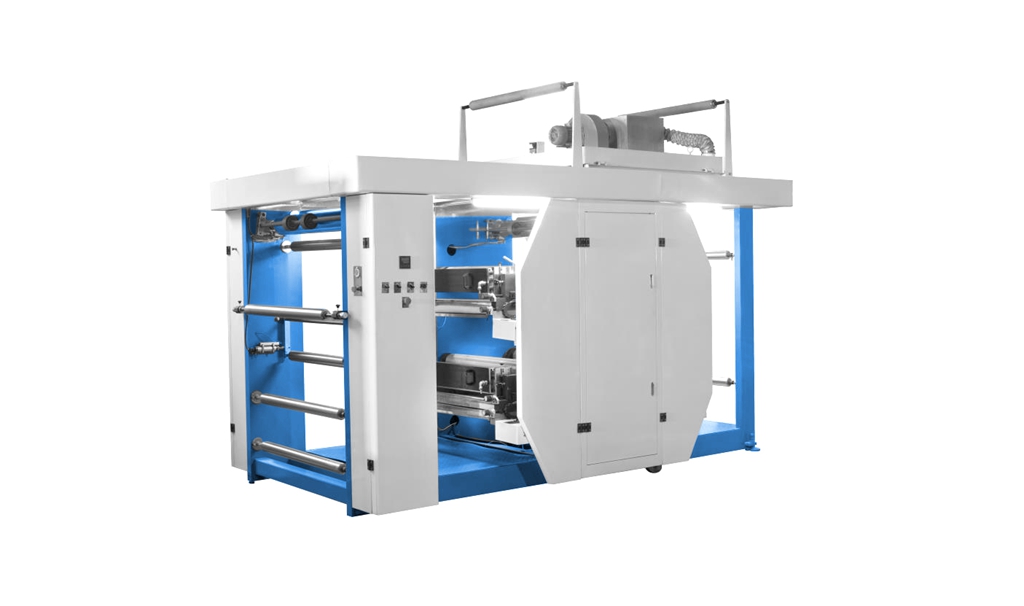

LYT-4 Paper Roll To Roll Printing Machine

LYT-4 Paper Roll To Roll Printing Machine Product Application:

This machine is ideal equipment for paper online printing. Adopt rubber plate or resin plate or resin plate to printing paper with water-based Ink. using chamber doctor blade and ceremic roller structure,More eco friendly and machine using automatic magnetic tension control system to ensure uniform tension. roll to roll printing supply more higher effective capacity.

Download DOC

Contact Now

Product Application

Main Technical Variables

TYPE	LYT4-800型	LYT4-1000型	LYT4-1200型	LYT4-1300型
Max. Printing material width	800mm	1000mm	1200mm	1300mm
Max. Printing width	760mm	960mm	1160mm	1260mm
Printing length range	230-800mm	230-800mm	230-800mm	230-800mm
Printing speed	5-100m∕min	5-100m∕min	5-100m∕min	5-100m∕min
Register precision	≤±0.20mm	≤±0.20mm	≤±0.20mm	≤±0.20mm
Thickness of plate（including the thickness of double sides glue）	Standard 2.28+0.38，can be changed according to customer needs.

Procedure

1. Figure out the paper width when you get a bag order.
2. Purchase the special width paper rollers or slitting the general one into right width.
3. Printing according to your customers' requirement.
