Product Application

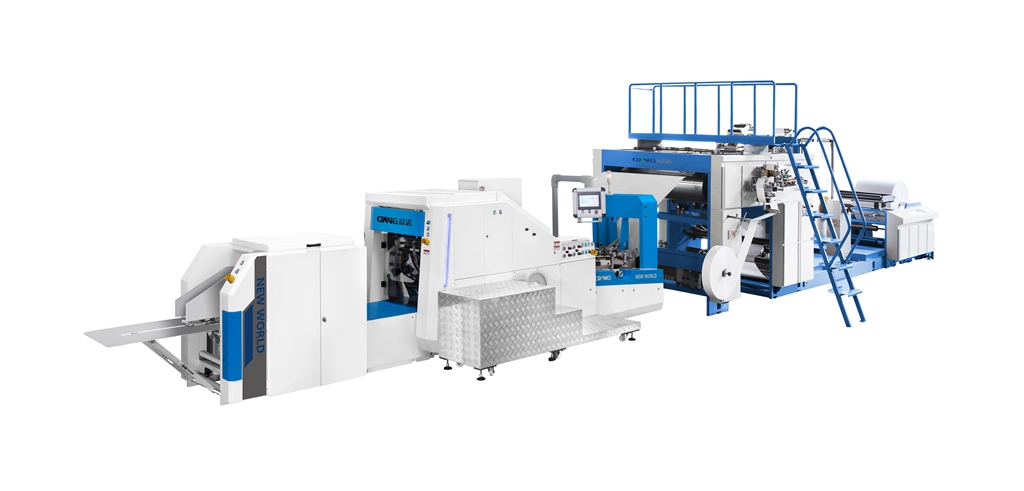

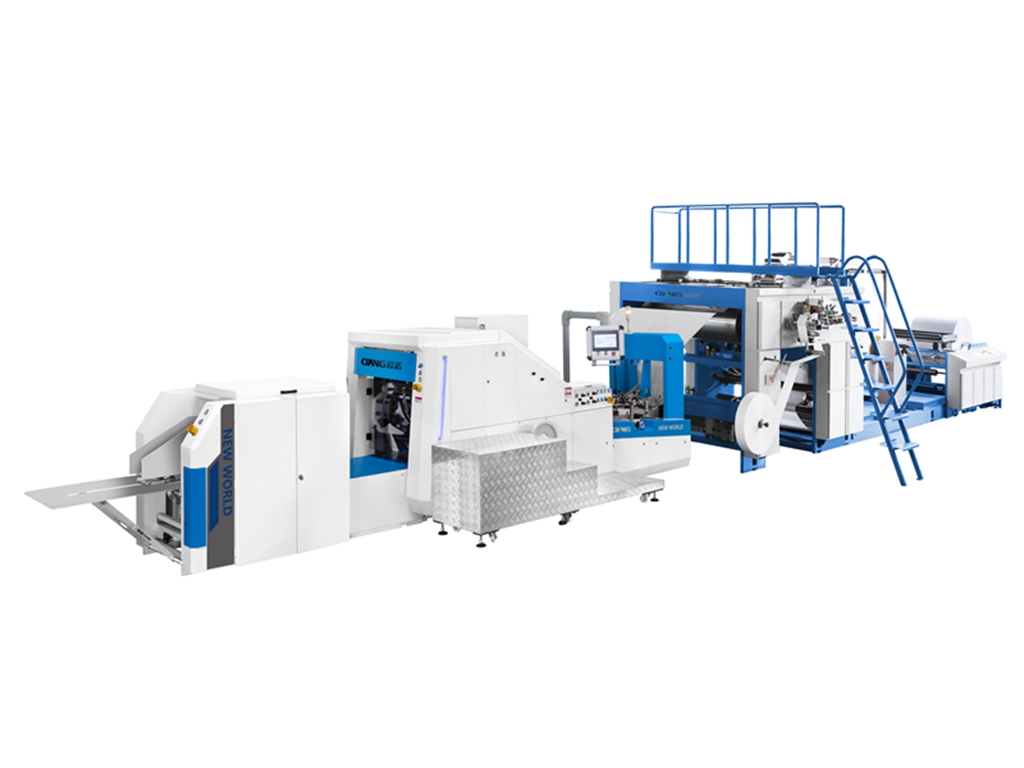

NEW WORLD-AS is This machine is designed to manufacture square bottom paper bags with flat-rope handles from paper roll,paper patch roll and flat handle paper roll,and it is an ideal equipment for producing paper handbags fast.By implementing steps including handle making.Handle application,tube forming,tube cutting and bottom forming within a fully automatic process,this machine can effectively save labor costs.Distinct flat-rope handle making process and special bag counting function,greatly improve packing efficiency of finished paper bags.Thanks to perfect technologies and fast production speed,this machine can produce paper handbags with high quality in many different forms,which are especially suitable for food and clothing industries.
By directly making flat-rope handles on paper web,customers can not only no longer rely on the traditional external handle making machine,but also be able to save 50% patch paper.Moreover,it can make folded or unfolded flat handle in the same machine,assisting users to balance traditional bag-using habit with highly effective packaging and transportation.
Main Technical Variables
| Model |
New World-AS330 |
New World-AS400 |
New World-AS460 |
New World-AS560 |
| Paper Diameter |
≤1500mm |
≤1500mm |
≤1500mm |
≤1500mm |
| Core Inner Diameter |
∅76mm |
∅76mm |
∅76mm |
∅76mm |
| Paper Weight | 80-140gsm | 80-140gsm |
90-140gsm |
90-140gsm |
| Paper Bag Width | 200-330mm with handle | 200-400mm with handle |
220-460mm with handle |
280-560mm with handle |
|
|
150-330mm without handle | 150-400mm without handle |
220-460mm without handle |
280-560mm without handle |
| Paper Tube Length | 280-430mm with handle | 280-550mm with handle |
320-670mm with handle |
320-670mm with handle |
|
|
280-530mm without handle | 280-600mm without handle |
320-770mm without handle |
320-770mm without handle |
| Bottom Width Of Paper Bag | 80-180mm | 90-200mm |
90-260mm |
90-260mm |
| Machine Speed |
150pcs/min |
120pcs/min |
120pcs/min |
120pcs/min |
| Total Power | 25kw | 29kw | 29kw | 29kw |
| Machine Weight | 20000kgs | 22000kgs | 23000kgs | 24000kgs |
| Machine Dimensions |
15000X4500X3400mm |
16000X5000X3400mm |
16500X5500X3500mm |
16500X5500X3500mm |

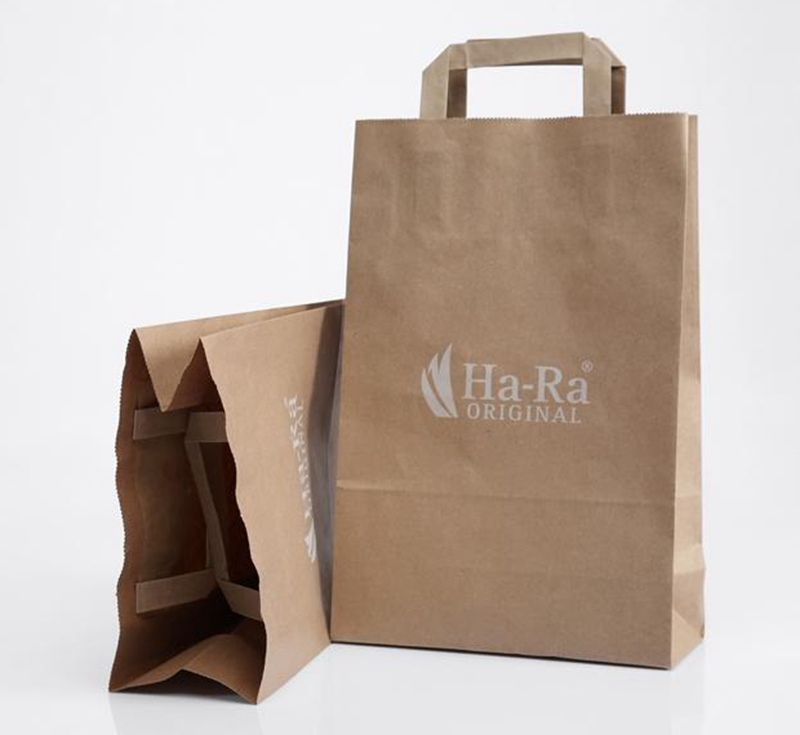

Bag Type - New World-AS series can make
Full Machine Servo Motor Structure
Our new technology full servo control paper bag machine,it is equipped with lip cut servo,cutting knife servo,bag opening servo,bottom gluing
servo,bottom closing servo,bag collection servo and main servo,more intelligent for customer running.
Advantages:
1.Reduce time when adjusting bag size.
2.More capacity for production.
3.Low requirements for engineers operation experience.
4.More intelligent.
Ouyang brand paper bag making machine,high speed, low noise,energy-saving.
Main wallboard: The raw material is nodular cast iron, which made by pouring molten iron. More force and wear resistance, high strength, high toughness, stable running and machine life extended by up to 80 %.
Big hub: Integral casting , 5-axis machining, perfectly curved surface, finished in 10 hours continually work, minimize fitting errors.
Former support: The former support is to held the big hub,so it should be strong enough for high speed and long time running.
Developing fast and covering an area of 130,000㎡。
MAZAK HCN6800L FLEXIBLE PRODUCTION LINE (6 SETS)
MAZAK HCN6000L FLEXIBLE PRODUCTION LINE( 6 SETS)
Mazak Horizontal Machining Center. The maximum capacity of the tool magazine is 330 tools, which can meet the requirements of workpiece diversification and unmanned production.
MAZAK VCN700DL ( 1SET)
Mazak vertical machining center. Agile spindle acceleration and deceleration, high-speed axis feed, and efficient tool exchange effectively shorten the processing time.
MAZAK QTC200MYL ( 2SETS)
MAZAK QTC300MYL ( 2SETS)
Third, Mazak CNC lathe. Using the latest SMOOTH G system, it can be widely used in aerospace, instrumentation and other industries. High-efficiency machining requirements for small precision parts.
Mazak i-630v/6 ( 1SET)
Fourth, Mazak 5-axis simultaneous vertical machining center. The equipment is equipped with a swing spindle and a rotary table, which can perform 5-axis simultaneous machining of complex surfaces.
Okuma MCR-A5II25 (4SETS)
Fifth, OKUMA-MCR gantry type 5-sided machining center. Equipped with various extended processing systems to complete 5-sided, curved and other three-dimensional processing, the roughing and finishing of almost all processes can be completed in one clamping.
