NEW WORLD C Series-Adjustable roll to sharp bottom paper bag making machine

home/products/NEW WORLD C Series-Adjustable roll to sharp bottom paper bag making machine

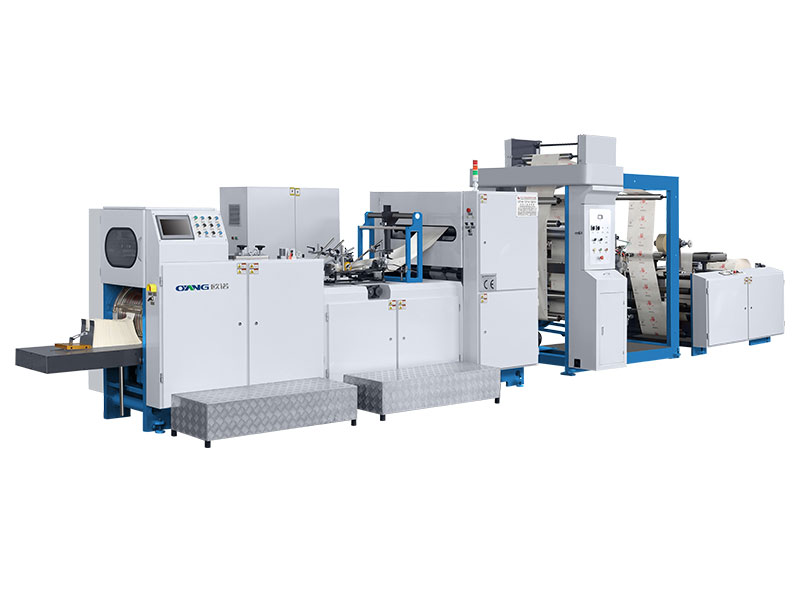

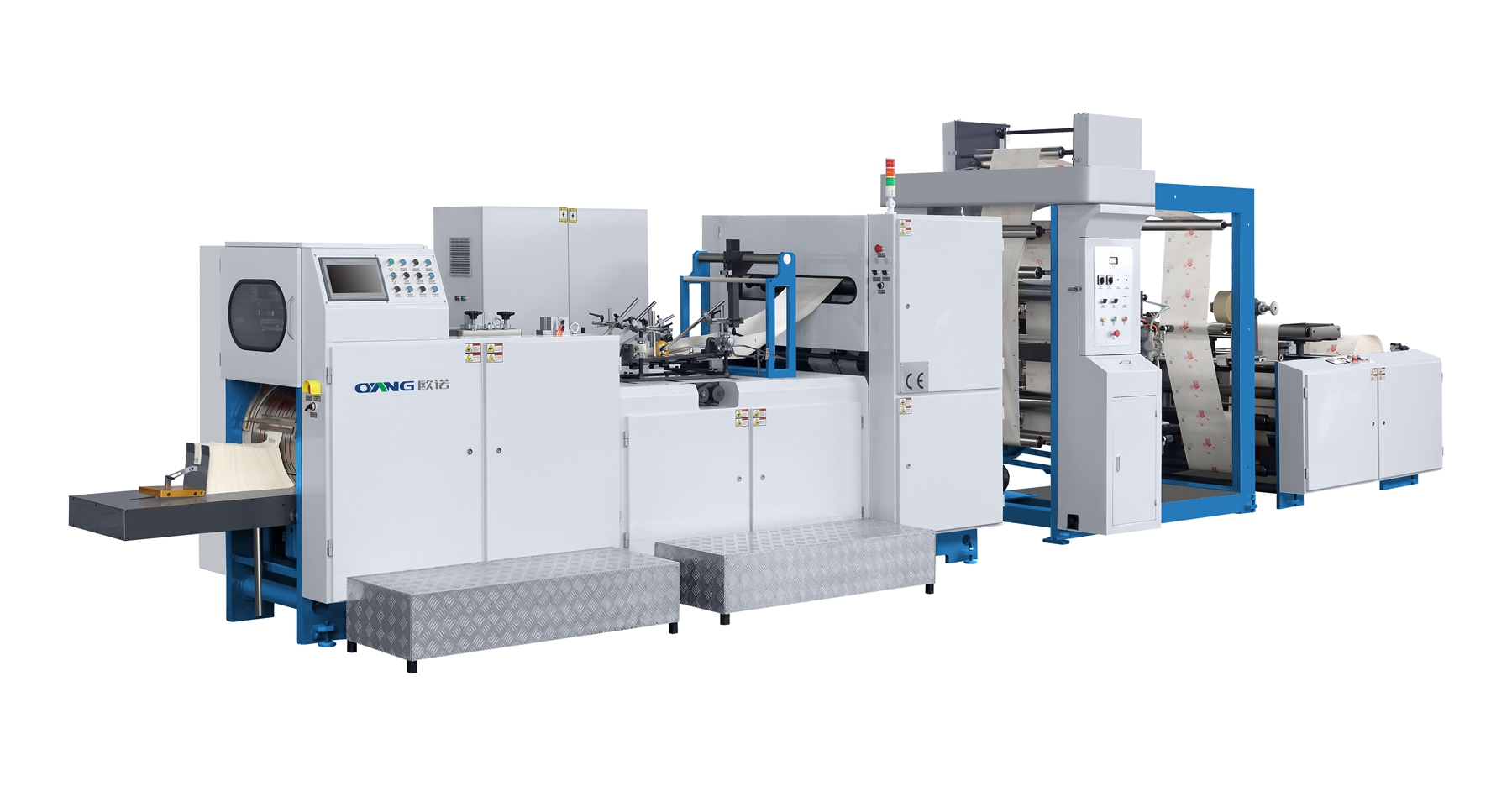

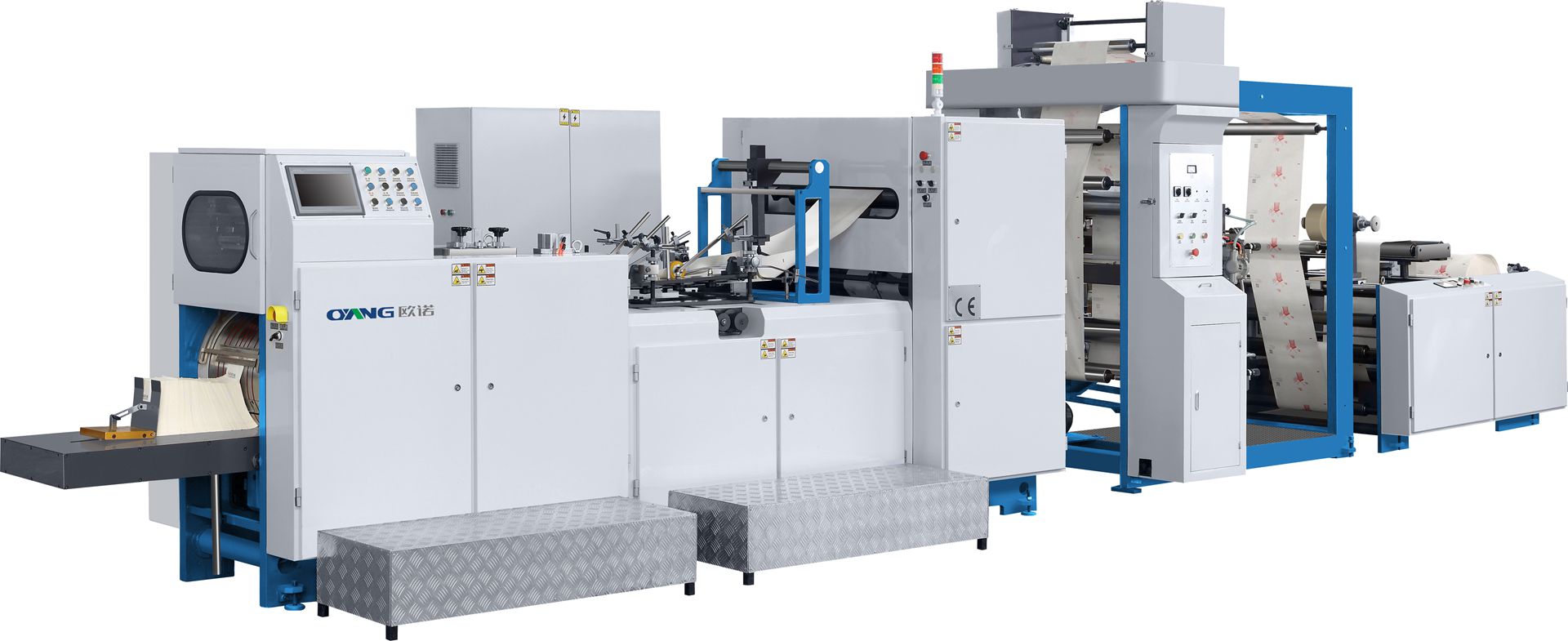

NEW WORLD C Series-Adjustable roll to sharp bottom paper bag making machine

NEW WORLD C Series-Adjustable roll to sharp bottom paper bag making machine Product Application:

This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.

Download DOC



Product Application

This machine is designed to manufacturer sharp bottom paper bag from paper roll,and it is suitable for kraft paper,ribbed kraft paper,grease-groof paper,coated paper,medico paper&etc.

By implementing step including roll feeding,side gluing,perforating,tube forming,can effective save labor costs,it has advantage of easy operation,high efficiency,more steady,it is an ideal machine for make different kind of paper bag.snack paper bag,food paper bag,bread paper bag.dry fruit paper bag and eco-friendly paper bag.



Main Technical Variables


Model New world -C270 New world -C330
Paper Thickness Range 30-100GSM 30-100GSM
Paper Bag Width Range 80-270mm 80-330mm
Paper Bag Length Range 120-400mm 120-720mm
Side Folding Range 0-50mm 0-50mm
Production Precision ±0.2mm ±0.2mm
Machinery Speed 150-500 pcs /min 150-500 pcs /min
Maximum paper roll Width 900mm 1000mm
Maximum Paper roll Diameter 1200mm 1200mm
Total Power 380V,3 Phase 16kw         380V,3 Phase 16kw
Machine Weight 5000kg 5500kg
Machine size 7300×2000×1850 mm 7300×2100×1900 mm


Bag Type - New World-C series can make





Developing fast and covering an area of 130,000㎡。


MAZAK HCN6800L FLEXIBLE PRODUCTION LINE (6 SETS)

MAZAK HCN6000L FLEXIBLE PRODUCTION LINE( 6 SETS)

Mazak Horizontal Machining Center. The maximum capacity of the tool magazine is 330 tools, which can meet the requirements of workpiece diversification and unmanned production.


MAZAK VCN700DL ( 1SET)

Mazak vertical machining center. Agile spindle acceleration and deceleration, high-speed axis feed, and efficient tool exchange effectively shorten the processing time.


MAZAK QTC200MYL ( 2SETS)

MAZAK QTC300MYL ( 2SETS)

Third, Mazak CNC lathe. Using the latest SMOOTH G system, it can be widely used in aerospace, instrumentation and other industries. High-efficiency machining requirements for small precision parts.


Mazak i-630v/6  ( 1SET)

Fourth, Mazak 5-axis simultaneous vertical machining center. The equipment is equipped with a swing spindle and a rotary table, which can perform 5-axis simultaneous machining of complex surfaces.


Okuma MCR-A5II25  (4SETS)

Fifth, OKUMA-MCR gantry type 5-sided machining center. Equipped with various extended processing systems to complete 5-sided, curved and other three-dimensional processing, the roughing and finishing of almost all processes can be completed in one clamping.
