Non Woven Fabric Making Machine

Non Woven Fabric Making Machine Product Application:

Download DOC



AW-1600S/2400S/3200S Single S Spunbond Non Woven Fabric Making Machine

This machine is suitable for PP spunbond non woven fabric making. It used PP chips as raw materials input, undergoes the process of extrusion, spinning, quenching, closure air stretching, web formation, calendaring, winding and cutting as per requirements and then packed for storage and delivery.

    ITEM

    EFFECTIVE WIDTH

    GSM

ANNUAL OUTPUT

EMBOSSING PATTERN

    S

1600MM

    8-200

1500T

Diamond, oval, cross and line

    S

2400MM

    8-200

2400T

Diamond, oval, cross and line

    S

3200MM

    8-200

3000T

Diamond, oval, cross and line

    SS

1600MM

    10-200

2500T

Diamond, oval, cross and line

    SS

2400MM

    10-200

3300T

Diamond, oval, cross and line

    SS

3200MM

    10-200

5000T

Diamond, oval, cross and line

    SMS

1600MM

    15-200

2750T

Diamond and oval

    SMS

2400MM

    15-200

3630T

Diamond and oval

SMS

3200MM

 15-200

5500T

Diamond and oval

Working principle diagram


S Working principle diagram


SS Working principle diagram



SMS Working principle diagram


NONWOVENS APPLICATIONS

Allwell Nonwoven lines are designed and manufactured in accordance with individual customer requirements. Their possible area of application is correspondingly wide. Such as :


PACKAGE - Shopping bag, Rice Packaging, Clothes packaging, etc.
HYGIENE - Baby and adult diapers, Female hygiene, etc.
MEDICAL - Surgeon's masks, Disposable garments, etc.
FURNITURE - Beds Cover, Seatings Cover, etc.
TECHNICAL - Geotextiles, Agriculture, etc.
FILTRATION - Air, Gas, Liquids, etc.





Winder

(1)Online cutting, automatic fabric rolls changing.

The maximum speed is 150m/min

(2)Tension is uniform, winding is neat.

The largest diameter of fabric is 1.5m

(3)Counting meters synchronously and accurately.

The maximum number is 9999m.

(4)Allwell Winder can run separately(single action status)



Hot mill

(1)Temperature is uniform, difference in temperature≤2℃

(2)Pressure is uniform, fabric is even.

(3)Speed is even, which is (10-150)m/min

(4)Easy operation and maintenance.



Stretching Unit

Features: The stretching unit is slit type.

1. High effeciency of stretching, low power consumption



Thermal Oil HeatingSystem

(1)The head of screw is heated by thermal oil heating system.
(2)The filter, The measuring pump, spinning box and pressure roller is heated and retained heat by Thermal oil heating system.



Spinning Box andSpinning Components

Spinning components include filter, distributing plate, sealing strip, etc.

Allwell spinning box symmetrically by pressure to spinning components and heat and retain heat  for melted material as the last step.



Electrical ControlSystem

According to the characteristics of producing spunbonded non woven fabric, Allwell adopts external advanced electric  control manner to operate the extruder by manual and automatic way.



Special data  would be supply after confirm your order.

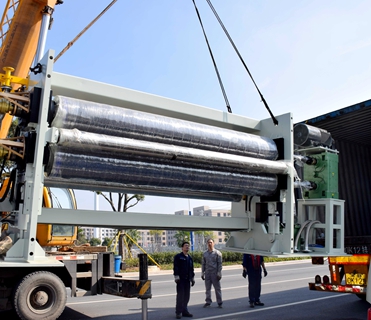

Package


As per export standard, they will also be treated before delivery against damage and rusting.



Container

1.6S ----4x40'HQ + 1x20'GP;

1.6SS---9x40'HQ + 1x20'GP;

2.4S-----5x40'HQ;
2.4SS---10x40'HQ;
3.2S-----7x40'HQ; 3.2SS---15x40'HQ

Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevant equipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.

Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.

2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than the relevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
*
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
