ONL-M1300 High Speed Non Woven Coating And Lamination Machine

home/products/ONL-M1300 High Speed Non Woven Coating And Lamination Machine

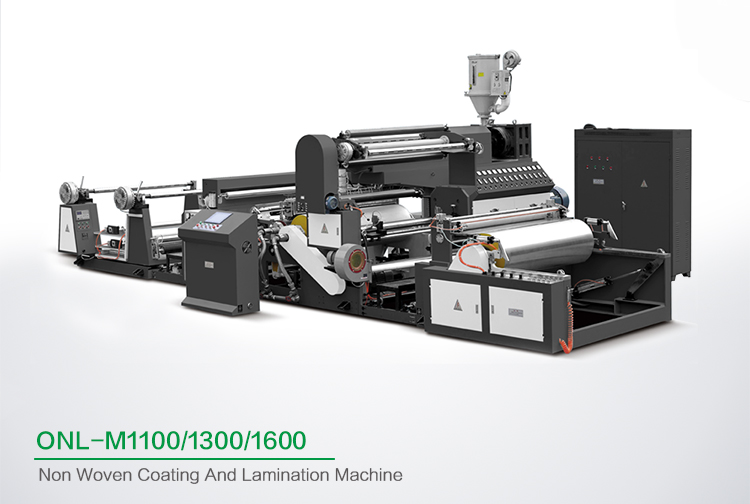

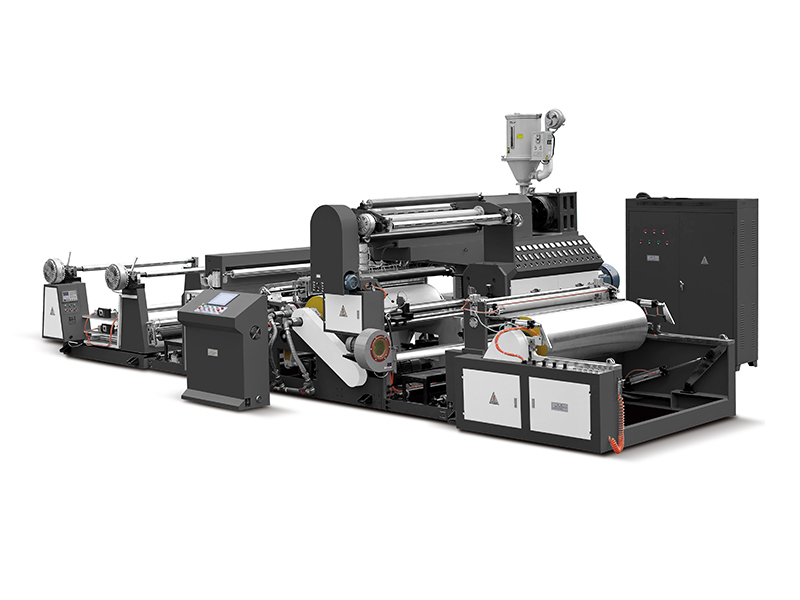

ONL-M1300 High Speed Non Woven Coating And Lamination Machine

ONL-M1300 High Speed Non Woven Coating And Lamination Machine Product Application:

Download DOC


Product Application

ONL-M1300 High Speed Non Woven Coating And Lamination Machine

This machine is used for producing self-adhesive products, such as self-adhesive tape, double-adhesive tape, foam tape, aluminum foil tape, clean tape, masking tape, etc. It also suitable for laminating different materials, such as non-woven, filter materials, shoes materials, medical materials, label, film, etc.

This machine is applicable to professional non woven , film, the paper class material intercept. Widely used in bag making, printing and packaging industry, etc.



Main Technical Variables

Model

ONL-M1100

ONL-M1300

ONL-M1600

ONL-M1800

Extrusion Die Width

1200MM

1400MM

1800MM

2000MM

Coating Width

500-1000MM

600-1250MM

800-1500MM

900-1700MM

Max. Coating Speed

10-150M/MIN

10-150M/MIN

10-150M/MIN

10-150M/MIN

Coating Thickness

0.01-0.03MM

0.01-0.03MM

0.01-0.03MM

0.01-0.03MM

L/d Ratio For Screw

32:1

32:1

32:1

32:1

Rewinding Roll Diameter

Ø1200mm

Ø1200mm

Ø1200mm

Ø1200mm

Overall Size (MM)

12500X7000X3200

13000X8000X3200

12000X9000X3200

13000X12000X3200

Total Power

70KW

80KW

100KW

130KW

Mirror Cool Roll Diameter

Ø510MM

Ø510MM

Ø510MM

Ø510MM

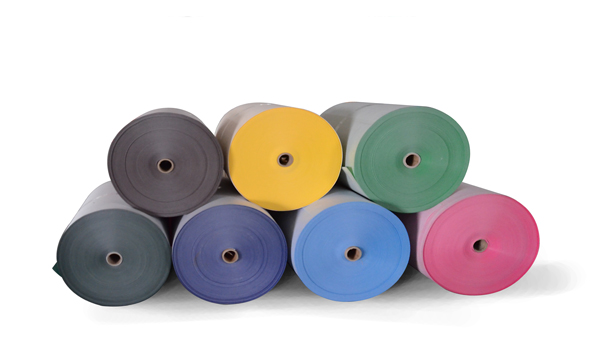

Adopt Material

Non woven\BOPP\Aluminum foil

Roll to roll lamination

Laminated non woven box bag

After lamination the non woven fabric roll with BOPP film, the finished roller can as rawmaterial for Leader -10S non woven box bag making to make the box bag.

Bopp film with rotogravure printing effective before lamination

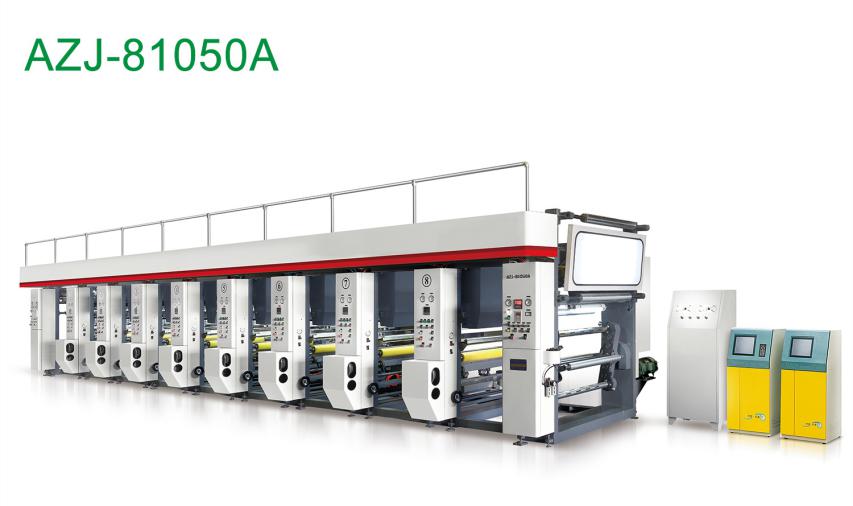

Rotogravure Printing Machine

For Bopp Film Printing

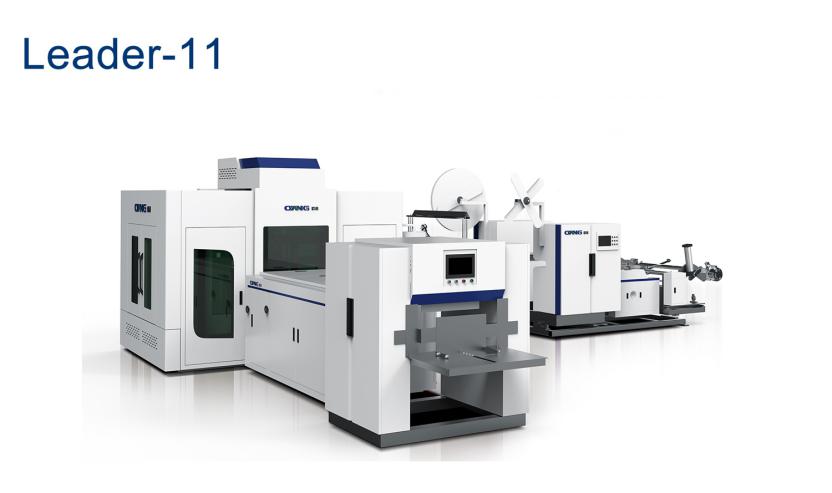

Leader - non woven bag making machine

for Laminated non woven box bag making

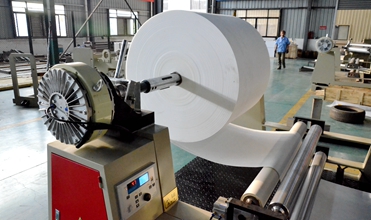

Double Feeding Part

Function: Automatic loading, magnetic power tension controller, Automatic correcting deviation system.

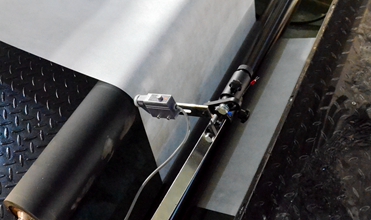

Correcting deviation device

Ensure the accuracy of double layer lamination

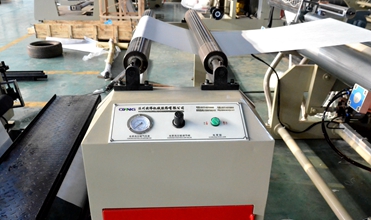

Corona Equipment

Adopts dust proof ,interference-proof stucture, pneumatic switch cover equipment, achieve discharging ozone.

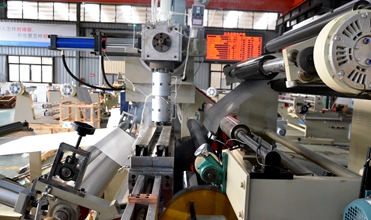

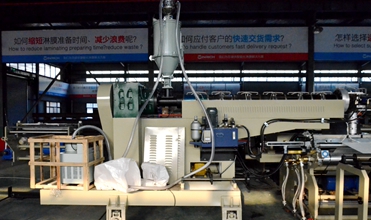

Extrusion Equipment

Car type extrusion machine

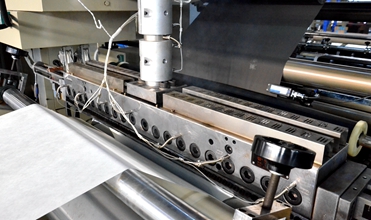

T-type die head

Automatic PE feeding equipment

Oil hydraulic pump changes filter Aromatically



Second Feeding equipment

360 degree feeding frame

High tension control accuracy

Double Air shaft

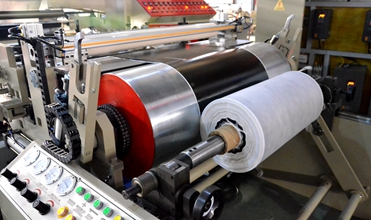

Extrusion and compounding equipment

Three roller compounding mechanism

Peeling off silicone roller

High pressure blower sucks scrap edge quickly.
Rewinding equipment adopts cylinder to switch automatic.

Drived by one vector frequency electric motor



Rewinding equipment

(1).Surface rewinding (Double work-station ,Non-stopping)
(2).Surface rewinding roller is drived independently
(3).Drive motor
(4).Frequency speed control
(5).Rewinding shaft be pressed by compcting cylinder
(6).Hydraulic pressure edge regulating

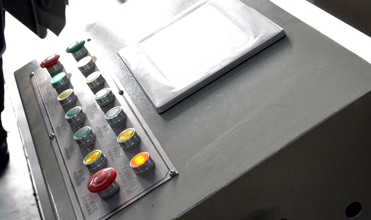

Control unit

(1).Frequency control of motor speed
(2).Rewinding shaft air clamper
(3).Other equipment
(4).All balancing aluminum guide roll Guide roller: ?90—120×1300mm
(5).The rack adopts the wallboard structure
(6).Pneumatic: all are excellent quality, gas circuit can be controlled in the first touch.
(7).Automatic mechanical transmission system


The following is OUR load container info for ONL-M1300 Lamination Machine. Special data  would be supply after confirm your order.


Container


One 40'ft container & 20'ft container


Weight
  15000KG

Packaging

Details


Pearl cotton with plastic film.






Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.
