Product Application

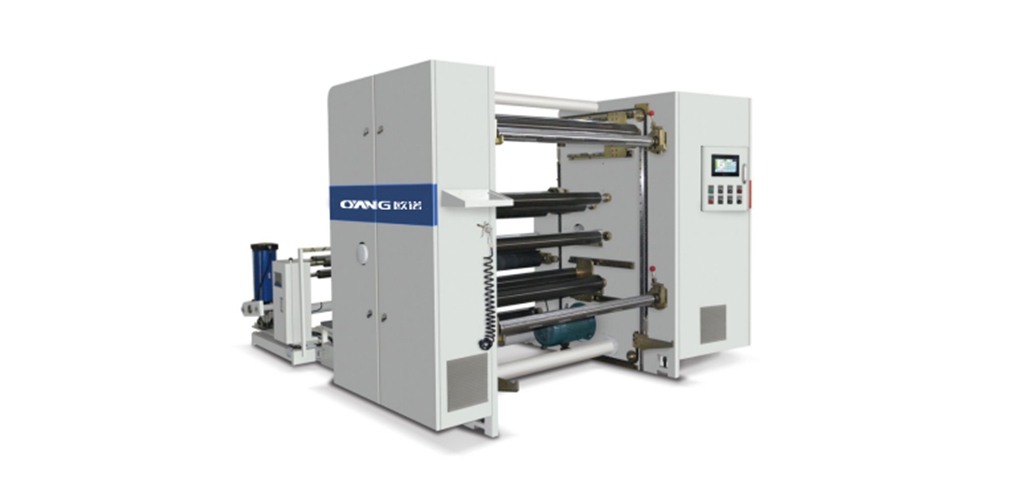

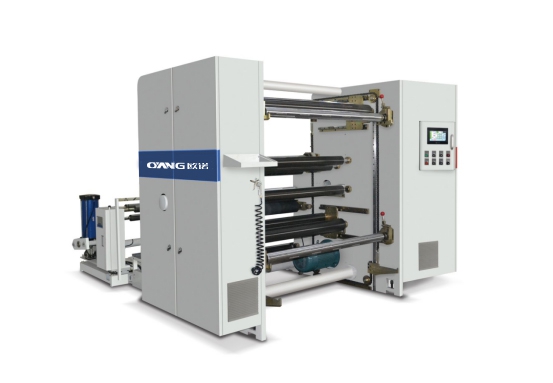

The ONL-1600A Slitter Rewinding Machine suitable for Printing&Packaging Industry, converting jumbo roll to narrow roll(The minimum width 30mm，the maximum diameter 1000mm).Jumbo roll material, such as cardboard paper ,kraft paper,coated paper, single silicon paper etc slitting & rewinding.
Main Technical Variables
| Technical parameter | |
| Max width mother roll | 1600mm |
| Min width finished roll | 30mm |
| Max diameter mother roll | 1400mm |
| Max diameter finished roll | 1000mm |
| Max mother roll weight | 1200KG |
| Speed of slitting | 0-300/min |
| Slitting capability | 40-400gsm |
| Rewinding way | Central&surface |
| Precision | ±0.2mm |
| Speed regulation control | Frequency converter |
| Power input | 380V,50HZ,3PH |
| Dimension | 3600*3200*1900 |
| Total weight | 4200KG |
