Features:
High Precision: Equipped with advanced die-cutting technology to ensure every cut is accurate and flawless.
High Efficiency: Fast operating speed, ideal for mass production.
Strong Stability: Robust structure, suitable for long hours of continuous operation.
Intelligent Operation: User-friendly control panel for simple and easy operation.
Versatility: Supports die-cutting of various materials, including corrugated cardboard, card stock, and plastic film.
Applicable Industries:
Packaging manufacturing (cartons, paper boxes)
Post-press processing
Advertising industry
After-Sales Service:
Installation and commissioning support
One-year warranty with lifetime maintenance
24/7 technical support

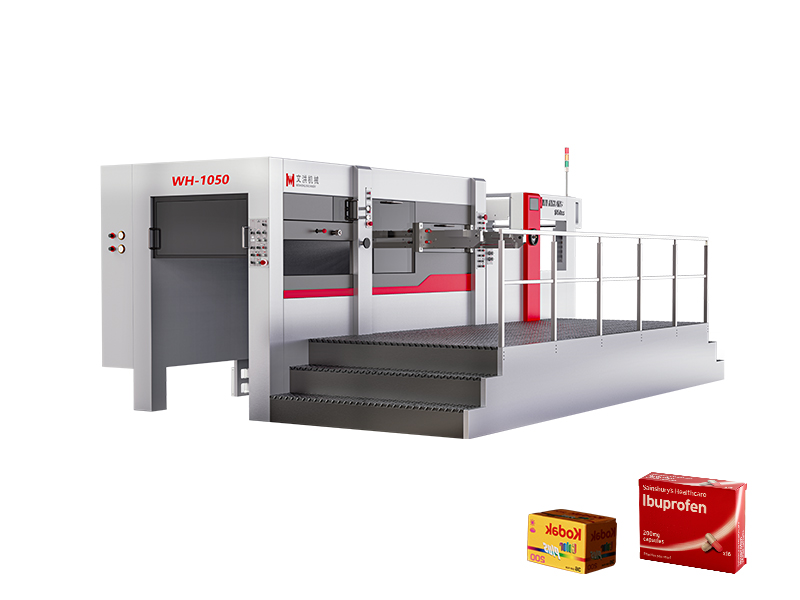

| Model No. | WH-1050 S(Without Waste Removal) | WH-1050SS (With Waste Removal) | WH-1050SSR Die Cutting Embossing (With Waste Removal) |
| Max.Sheet Size | 1050x750mm | 1050x750mm | 1050x750mm |
| Min.Sheet Size | 400x360mm | 400x360mm | 400x360mm |
| Max.Cutting Size | 1040x720mm | 1040x720mm | 1040x720mm |
| Maximum cutting pressure | 400Ton | 400Ton | 600Ton |
| Feeding materials | 80-2000g/m2 Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm | 80-2000g/m2 Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm | 80-2000g/m2 Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm |
| Min.gripping margin | 9.5mm | 9.5mm | 9.5mm |
| Maximum mechanical speed | 8000 Sheets/hr | 8000 Sheets/hr | 8000 Sheets/hr |
| Required air supply | Air compressor discharge 0.36m3/Min-provided by the user | Air compressor discharge 0.36m3/Min-provided by the user | Air compressor discharge 0.36m3/Min-provided by the user |
| Power required | 20.0kw | 20.0kw | 45.0kw |
| Machine weight | 16 Ton | 17 Ton | 20 Ton |
| Machine dimension | L6.42W4.21H2.42m | L7.38W4.21H2.42m | L7.38W4.21H2.42m |
About Ounuo Factory
Since 2006year, Zhejiang Ounuo Machinery Tech Co.,Ltd focus on Non Woven Bag Making Machine 18years.
More than 1000+ customers have been using our equipment in China domestic market, and exported to more than 120+ countries, accounting for more than 90% of the market sales share.
Now total have 4 factory:
|
Factory |
Equipment/Products |
Mark |
|
No.1 |
? Non Woven Bag Making Machine ? Paper Bag Making Machine ? Paper Cutlery Machine |
Plant Area: 130,000㎡ $145 Million Investment 400 employee |
|
No.2 |
? Rotogravure Printing Machine ? Digital Printing Machine |
Plant Area: 85,000㎡ $60 Million Investment |
|
No.3 |
? Die Cutting Machine |
Plant Area: 60,000㎡ $30 Million Investment |
|
No.4 |
? BOPP/CPP film raw material (2sets Germany Brueckner Production Lines) |
Plant Area: 145,000㎡ $120 Million Investment |
Advantage 2- $30million Intelligent CNC Center
China biggest intelligent digital CNC center for the package and printing machine industry!
$30 million investment for the world-glass and high precision digital processing center, including: Mazak 5 axis linkage turning and milliong compound + Mazak Flexible production line + Okuma gantry milling machine + Germany Schott grinding machine, etc.
Equipped with a variety of precision analyzing and testing instruments to further ensure the high precision of spare parts on each equipment.
Like Leader Box Bag Machine Mould Frame, Mould, Push Seat, Gearbox, Big Plate, Ultrasonic Plate,etc, all processed by above machinery, high quality accessories ensure stable and high-speed running!
Also Ultrasonic device, processed by ourselves 13 years!
