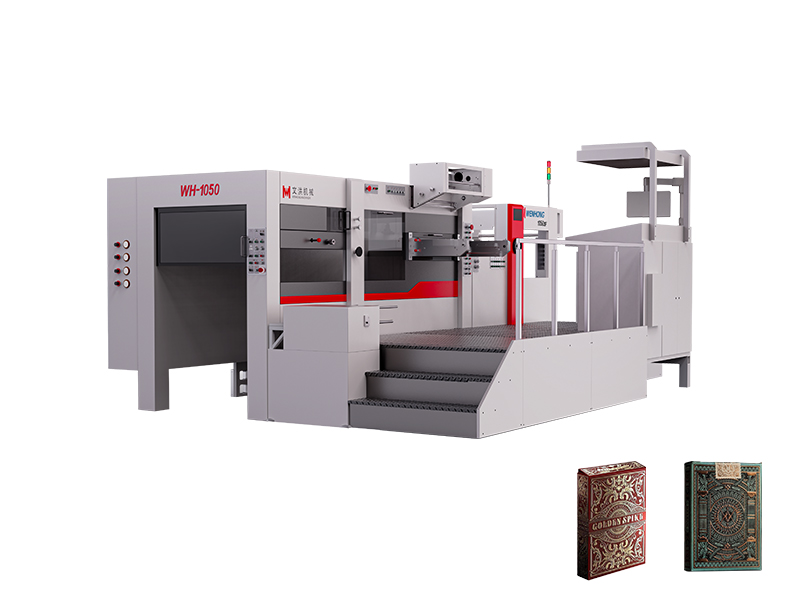

Whether it is the paper thickness or the size of the hot stamping surface, it can basically meet the existing production processes of all customers. It is widely used in wine packages, cosmetics, and product labels.
The side positioning adopts the pull and push dual-purpose side lay device, which is selected according to the paper, andthe switching is simple;
The turbine crank drives the elbow bar type high-precision plane die cutting lower workbench;
The control system of the foil stamping is world class (bobst technoledge);
Each shafts of the stamping section is equipped with a high-power servo motor drive, and can be independently programmed to set the gold foil step running or skip feed;
Application:
Suitable for large posters, three-dimensional POP, car trunk stickers, PC, outdoor large billboards, container stickers, glass, elevator decorative metal plates, plastic plates, acrylic, wood boards, etc., multi-color screen printing and color screen printing.
| Specifications | WH-1050SF | WH-1180SF | WH-1300SF |
| Max. Paper Size | 1050*750mm | 1180*900mm | 1300*1050mm |
| Min. Paper Size | 400*360mm | 400*360mm | 400*360mm |
| Max. Die Cutting Size | 1040*720mm | 1150*885mm | 1290*1000mm |
| Max. Hot Foil Stamping Size | 1020*720mm | 1150*885mm | 1290*1000mm |
| Board Size | 1140*760mm | 1230*915mm | 1370*1025mm |
| Feed Material | 80-2000g/m2 Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm | 100-2000g/m2 Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm | 100-2000g/m2 Paperboard, 0.1-2mm paperboard, corrugated board thickness ≤ 4mm |
| Max. Speed | 8000 sheets/h | 7500 sheets/h | 6800 sheets/h |
| Max. conveying paper height | 1600mm | 1600mm | 1600mm |
| Working Pressure | 400 Ton | 400 Ton | 400 Ton |
| Power required | 55.0 kw | 55.0 kw | 75.0 kw |
| Electric Heating System | 12 Individual heating area, Max. heating 200℃ | 12 Individual heating area, Max. heating 200℃ | 20 heating zones Max.200℃ |
| Registration Accuracy | ≤±0.075mm | ≤±0.075mm | ≤±0.075mm |
| Machine Weight | 18 Ton | 23 Ton | 26 Ton |
| Machine Dimension | L7.38mW4.1mH2.42m | L7.88mW4.34mH2.52m | L9.3mW4.52mH2.6m |
About Ounuo Factory
Since 2006year, Zhejiang Ounuo Machinery Tech Co.,Ltd focus on Non Woven Bag Making Machine 18years.
More than 1000+ customers have been using our equipment in China domestic market, and exported to more than 120+ countries, accounting for more than 90% of the market sales share.
Now total have 4 factory:
|
Factory |
Equipment/Products |
Mark |
|
No.1 |
? Non Woven Bag Making Machine ? Paper Bag Making Machine ? Paper Cutlery Machine |
Plant Area: 130,000㎡ $145 Million Investment 400 employee |
|
No.2 |
? Rotogravure Printing Machine ? Digital Printing Machine |
Plant Area: 85,000㎡ $60 Million Investment |
|
No.3 |
? Die Cutting Machine |
Plant Area: 60,000㎡ $30 Million Investment |
|
No.4 |
? BOPP/CPP film raw material (2sets Germany Brueckner Production Lines) |
Plant Area: 145,000㎡ $120 Million Investment |
Advantage 2- $30million Intelligent CNC Center
China biggest intelligent digital CNC center for the package and printing machine industry!
$30 million investment for the world-glass and high precision digital processing center, including: Mazak 5 axis linkage turning and milliong compound + Mazak Flexible production line + Okuma gantry milling machine + Germany Schott grinding machine, etc.
Equipped with a variety of precision analyzing and testing instruments to further ensure the high precision of spare parts on each equipment.
Like Leader Box Bag Machine Mould Frame, Mould, Push Seat, Gearbox, Big Plate, Ultrasonic Plate,etc, all processed by above machinery, high quality accessories ensure stable and high-speed running!
Also Ultrasonic device, processed by ourselves 13 years!
