NWF1400 I Automatic Single Color Roll To Roll Non Woven Fabric Screen Printing Machine

home/products/NWF1400 I Automatic Single Color Roll To Roll Non Woven Fabric Screen Printing Machine

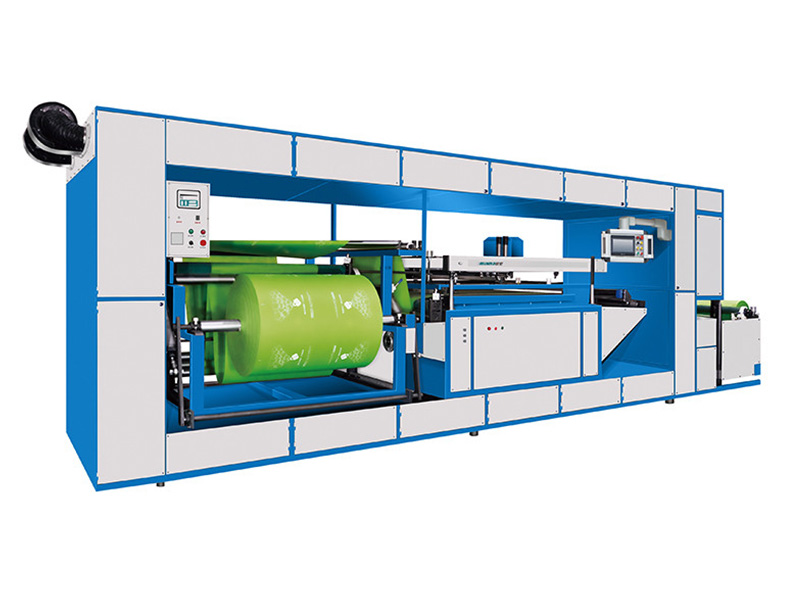

NWF1400 I Automatic Single Color Roll To Roll Non Woven Fabric Screen Printing Machine

NWF1400 I Automatic Single Color Roll To Roll Non Woven Fabric Screen Printing Machine Product Application:

Download DOC

Product Description


This screen printing machine is new design screen printing machine under the feedback from customer and improve the use. With balanced pressure and thick ink, is suitable for above 45 gsm non woven fabric printing. More high-quality printing. Big-size printing area to print multiply layouts.



Product Parameter



Usage

Cloths Printer

Automatic Grade

Automatic

Color & Page

Single color

Voltage

380V 3P4N

Dimensions(L*W*H)

7300X1800x2200mm

Warranty

1 Year

Type

screen printer

Color

single color

Speed

1800-2500 m/h

Size

7300X1800x2200mm

Weight

3500KG

Power

28kw


Main Features


1. Automatic feeding printing, drying and collecting. Save labors and overcome restraints caused by weather conditions.

2. With Balanced pressure, with high ink thickness. Suitable for printing on high-quality non-woven products.

3. Applied to various sized of printing screen frames.

4. Big-size printing area to print multiply layouts. Improve work efficiency.

5. Before and after full page printing, effective space between images can be reduced to minimum 1 cm.

6. High precision of printing controlled by servo motor.

7. Support non woven bag making more automatically and greatly improve work efficiency.

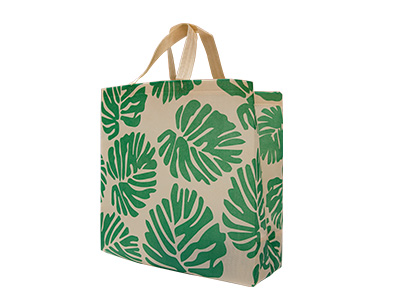

Printing Samples

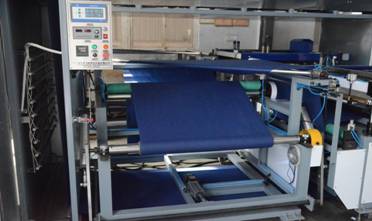

Feeding Part

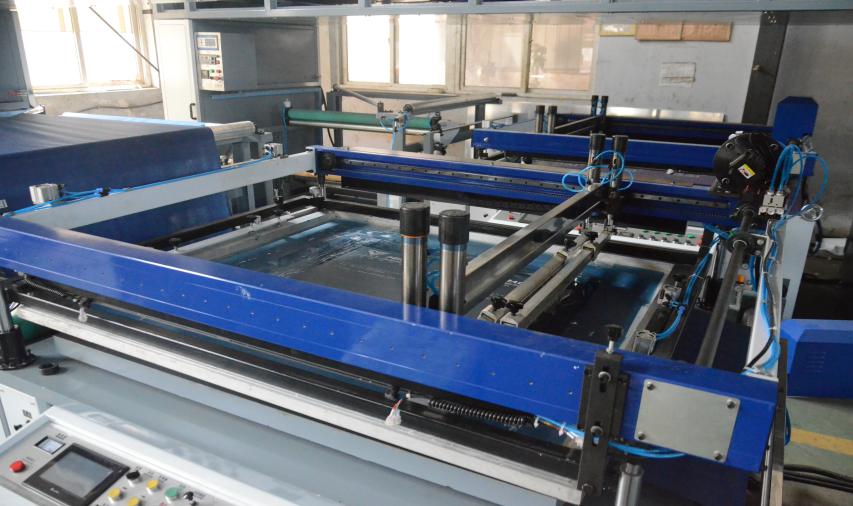

Screen Printing Part




Drying Part

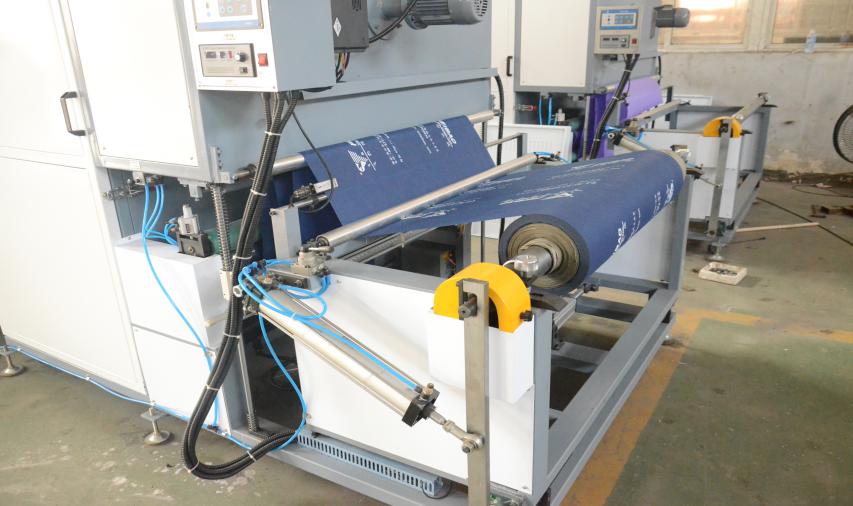

Collect Part

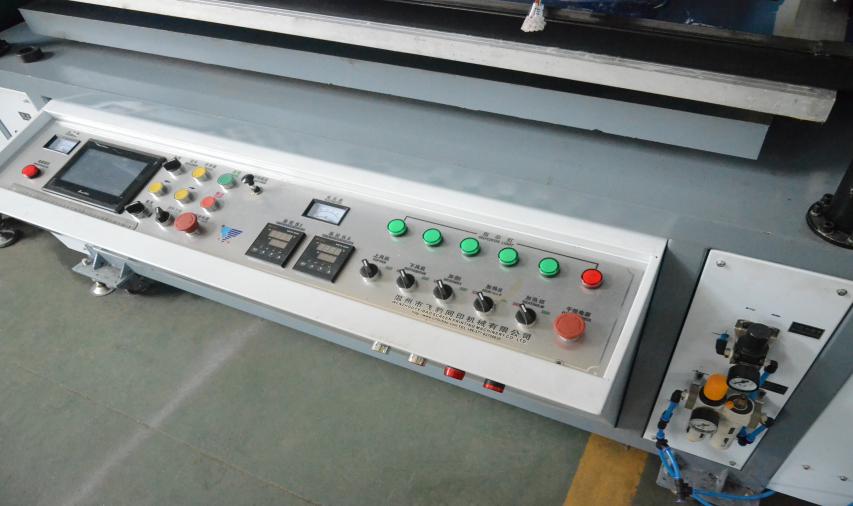

Operator computer



The following is OUR load container info for NWF Single Color Non Woven Screen Printing Machine . Special data  would be supply after confirm your order.


Container


One 40'ft container


Weight
  3500KG

Packaging

Details


Plastic film.





Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
