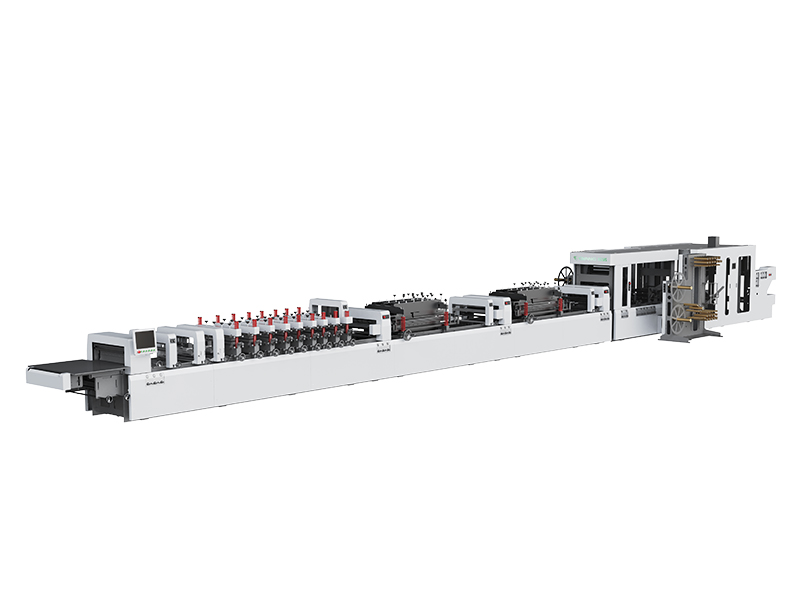

In response to the industry's requirement, Ounuo Machinery Group have developed a new generation of pouch making machine. With high speed, wide material adaptability and effective material cost control, this machine is dedicated to helping you achieve your cost reduction and efficiency goals. Through precise process control and efficient production flow, we ensure the stability and consistency of the pouch making process, thus improving product quality and production efficiency. Choosing us will bring you more professional and efficient pouch-making solutions, helping you gain an edge in the competitive market.
Product Parameters
Pouch Types
3 side seal
*Pouch Making Capacity
230 Pcs/min(Mechanical design speed 240 Pcs/min) about 50m
Three-side-seal speed value range:30-230 Pcs/min(pouch width≤130mm,pouch height≤410mm,Thickness≤90um);
(Set the maximum pouch making speed according to pouch length, original film material, pouch width and pouch making specifications, etc.)
Applicable Material
PE/PE,Laminated films,
OPP,BOPP,PET,PE,CPP,etc.
Material Thickness
40-160μm
Body Film Web Width,Max.
1300mm
Body Film Web Dia,Max.
Φ800mm
Pouch making specifications and sizes
Pouch Making Length:
Three-side-seal type pouch width: 60~650mm(The length can be made 6 times as long.)
60-420mm((Double feeding device can be used when it is too long)
The above pouches can be welded with zipper seals.
Pouch making cumulative fixed length error
± 0.3mm (per 100 pouches), color printing positioning photoelectric, on the premise of genuine film, the photoelectric color mark will not be lost. The hot sealing of production pouches should be flat, clear and beautiful.
Note: (The actual running speed will decrease due to pouch type, material, etc.)
Heat Sealing Method
Mechanical Press Seal
Total Power
60kW
Electrical Source
Voltage: three-phase 380V/50HZ + N + PE
Air Pressure
0.6 Mpa (6 kWfcm2)
Cooling Water
about 10L/min
Machine Color
Body Black Phosphating, Stainless Steel Safety Shield
Size
L-10000 * W-1900 * H-1932(mm)
Weight
6000kg
