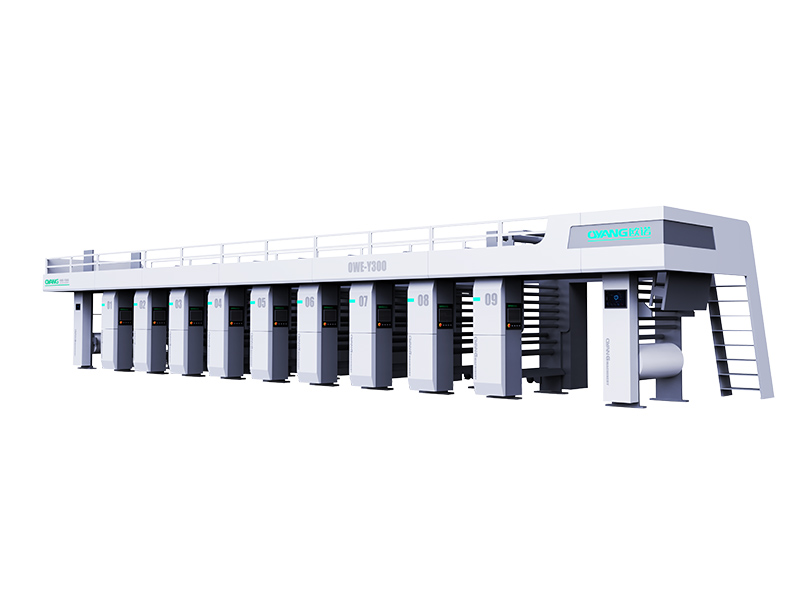

Product Description
1, Reliable and stable winding mechanism
- The built-in double-station structure can realize stable coil changing without stopping and slowing down in the whole process.
2. Science and technology, accurate printing unit
- Touch screen, each color independent configuration parameter Settings, choose the lock, the curve of drag, tinted operation such as mobile positioning and manipulation of the human nature, real-time and fast response;
3. Stable and efficient drying system
- Fully enclosed oven, stainless steel inner tank, low temperature, high wind speed drying
4, Comprehensive, reliable safety equipment
- Equipment in line with the CE certification; handling equipment, the implementation of software and hardware double protection, risk control more thoroughly.
Product Parameter
|
Printing color number |
9 colors (can be increased or decreased) |
|
Maximum printing width |
1050 mm |
|
Maximum machine speed |
300 m/min (standard version roller diameter φ170) |
|
Roll diameter range |
From 120 mm - 300 mm |
|
Alignment accuracy |
≤±0.1mm (automatic) |
|
Maximum diameter of unwinding |
Phi 600 mm |
|
Maximum diameter of winding |
Phi 600 mm |
|
Receiving and discharging paper core |
Φ76mm x Φ92mm (3") |
|
Tension range |
3-30KgF |
|
Tension accuracy |
≤± 0.3KgF (full amplitude accuracy) |
|
Heating mode |
Electric heating/steam/natural gas/hot oil, etc |
|
Heating temperature |
Max.80℃ (room temperature 20℃) |
|
Temperature control accuracy |
Plus or minus 2 ℃ |
|
Total machine power |
About 150Kw (main) |
|
Machine dimensions |
Approx. 19000 (L)*4350 (W)*3420 (H) ( mm) |
|
Machine weight |
About 54000Kg |
|
Printing material |
OPP, BOPP, CPP, PE, PET, PVC, NY, etc |
Zhejiang Ounuo Machinery Co,Ltd. is a professional manufacturer of supporting equipment such as paper packaging equipment, paper product equipment and non woven fabric industry chain. We are located in Pingyang County, Wenzhou City, Zhejiang Province, covering an area of 130000 square metres, 17 years deep ploughing in packaging equipment industry. Since its establishmentthe company has been market-oriented, relying on science and technology and vigorously developing new products. Invest 200 million imported of Japan MAZAK, OKUMA, Taiwan WELLE etc, the high-precision CNC Machine, to ensure the precision of the components and the stability of the whole machine.
Ounuo's Misson: Industry Is Keeping Change Because of Us.
Ounuo's Vision (10-15 Years): Responsibility to Promotion Solution of Top Quality and Intelligent Bag Making Industry. Keep in mind the mission and vision and strive to provide world. Our R&D team merges the advanced philosopy to practice and succeeds in applying to the related products The excellent quality and performance of our product originates from our long-term and continuous test and improvement. Al
