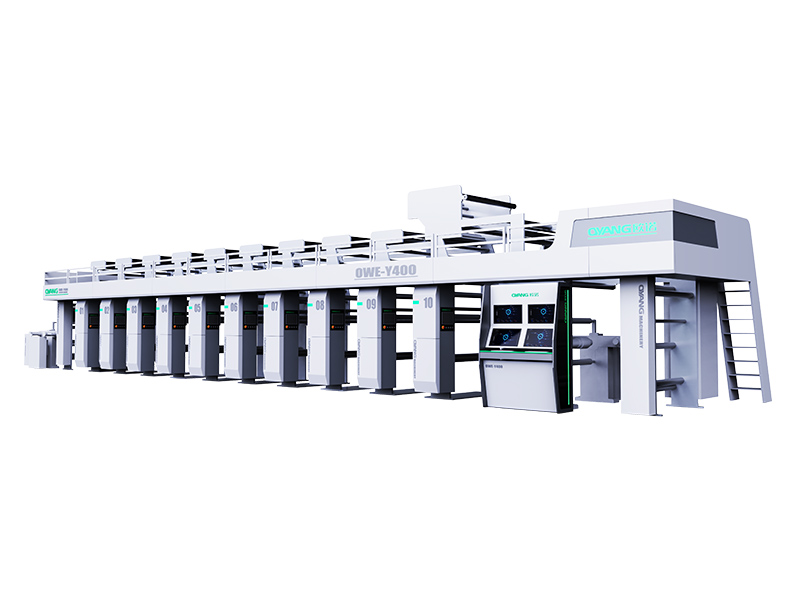

Product Description
1, Efficient and stable winding mechanism
- Adopt tower type double station receiving and discharging structure, realize the whole process without stopping, without slowing down stable coil replacement;- Support a key to "on" function, the stability of the fully automatic tinted function, reduce the reliance of the equipment to
the person's skills;
3, Advanced, and the drying system of environmental protection
- Oven adopts half suspension structure, guide roller exquisite layout, streamline material resistance;
4, Comprehensive, reliable safety equipment
- Equipment in line with the CE certification; handling equipment, the implementation of software and hardware double protection, risk control more thoroughly.
Product Parameter
Printing color number
10colors（Increase or decrease）
Maximum printing width
1250 mm
Maximum machine speed
400 m/min（Standard plate roll diameter φ170）
Roll diameter range
φ120mm－φ300mm
Roll length range
900 mm -1350mm
Alignment accuracy
≤±0.1mm（automatic）
Maximum diameter of unwinding
φ800mm
Maximum diameter of winding
φ800mm
Receiving and discharging paper core
Φ76mm×Φ92mm（3"）
Tension range
3-30KgF
Tension accuracy
≤±0.3 KgF（Full amplitude accuracy）
Heating mode
Electric heating/steam/natural gas/hot oil, etc
Heating temperature
Max.80℃（indoor temperature 20℃）
Temperature control accuracy
±2℃
Total machine power
Approx.175Kw（主）
Machine dimensions
Approx.L.23400 * W.4756 * H.4378（mm）
Machine weight
Approx.72000kg
Printing material
OPP、 BOPP、 CPP、PE、PET、PVC、NY etc.
