ONL-DT Double Line Non Woven T-shirt Bag Making Machine

home/products/ONL-DT Double Line Non Woven T-shirt Bag Making Machine

ONL-DT Double Line Non Woven T-shirt Bag Making Machine

ONL-DT Double Line Non Woven T-shirt Bag Making Machine Product Application:

Download DOC


Product Application

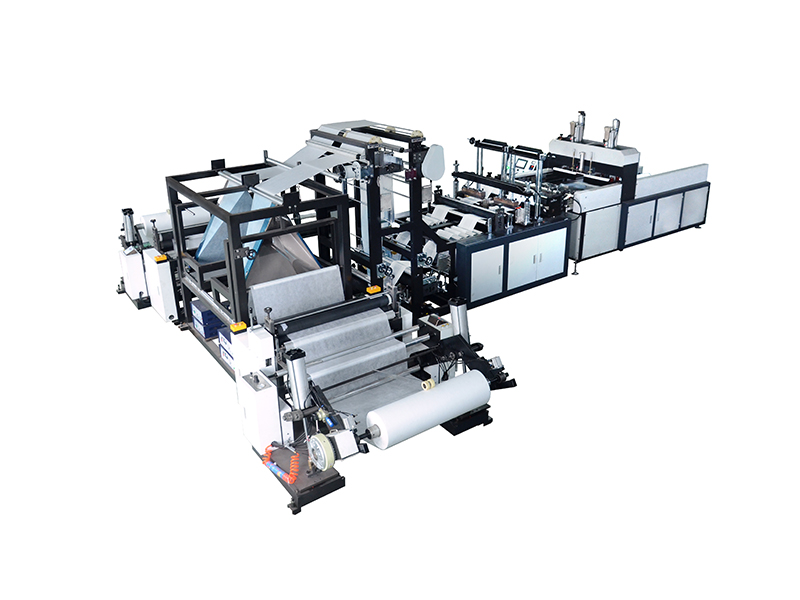

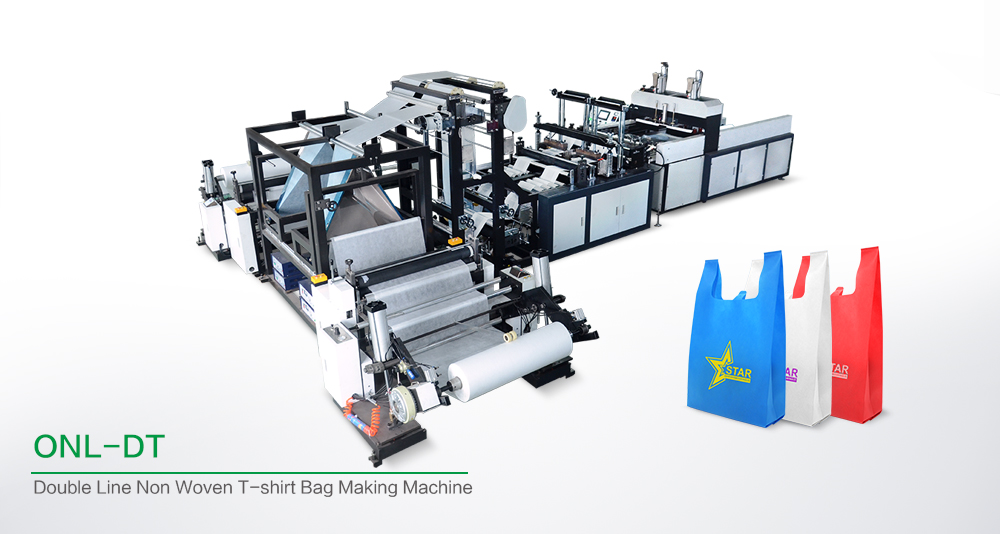

ONL-DT Double Line Non Woven T Shirt Bag Making Machine

This machine is suitable for PP non woven fabric, regeneration non woven fabric, etc. It using non woven fabric roller to produce non woven T shirt bag automatically. With double feeding part, one time can output double, it is the most popular for t shirt bag making

Type

ONL-DT

Can Be Customized

Fabric Thickness

35-100GSM

More thin or thick tell us please

Bag making speed

150-300pcs/min



Power Supply

220V 50Hz

Can change according your factory

Total Power

22KW



Overall Size

9500X6300X2250MM

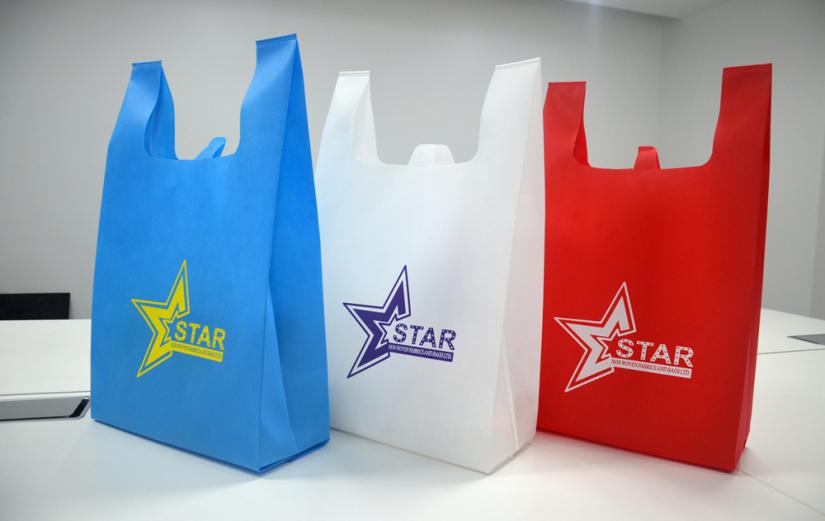

 Bag Type - ONL-DT model can make


T-shirt Bag (need make separately

need extra mouth punching machine
Bag Length: 10-500 mm
Bag H
eight: 100-800 mm
Bag Gusset: 0-80 mm

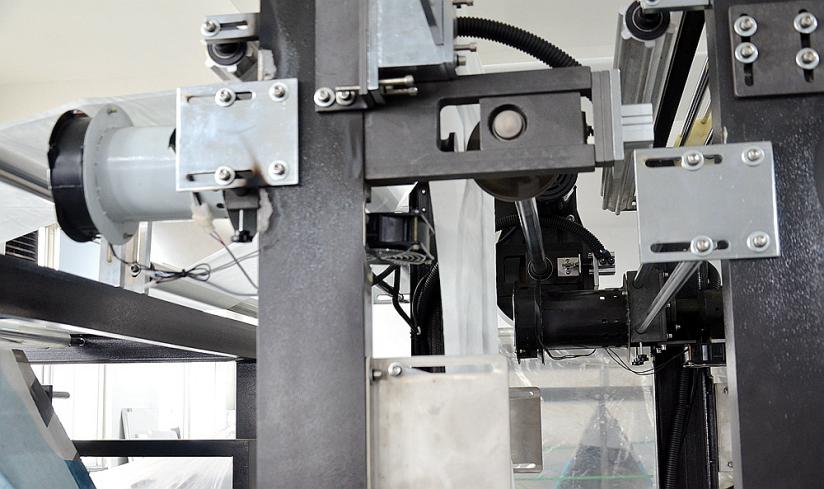

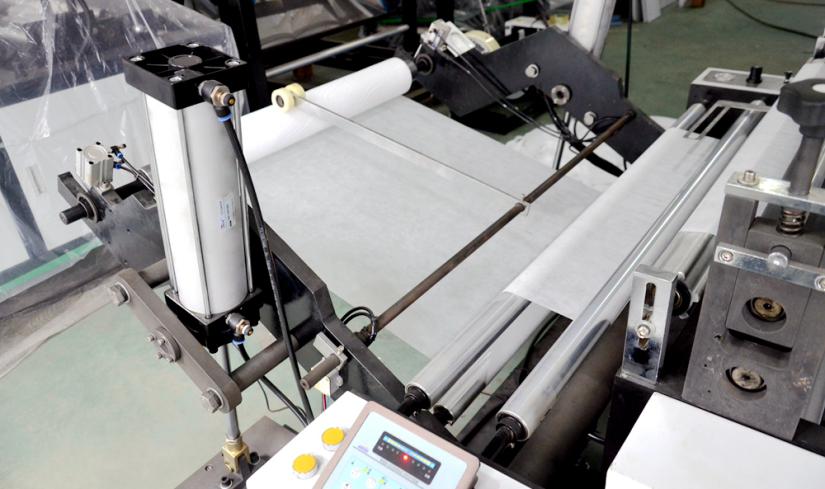

Feeding Part

Function: Double roller feeding, Automatic loading, magnetic power tension controller, Automatic correcting deviation system.

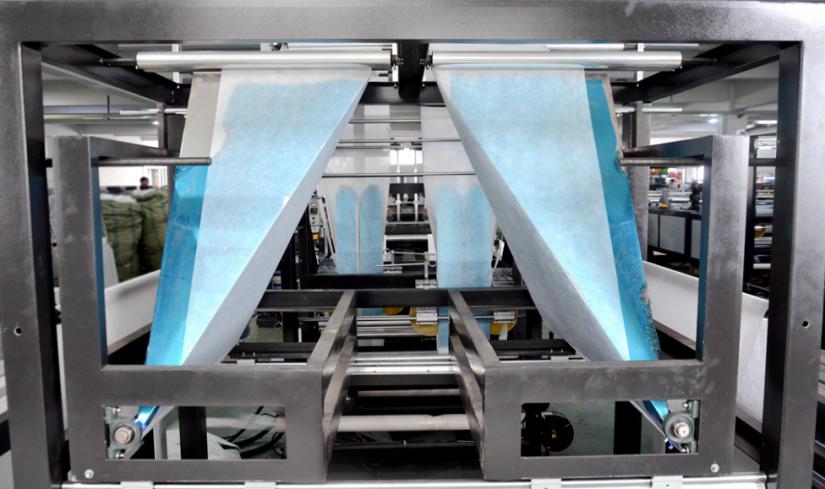

Double Bag Side Folding Part

Function: Though the triangular bracket to fold the fabric into two layer



Bag Side Sealing

This Part total have two ultrasonic, each would sealing the bag gusset side

Bag Side Gusset Part

For T-shirt bag making, this part is for bag side gusset finish.

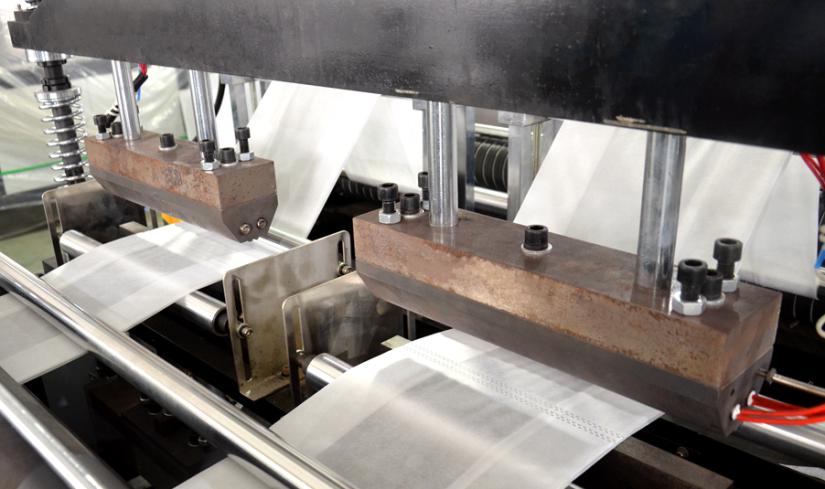

Bag Side Sealing

Function: Using Ounuo made ultrasonic to seal bag side.
Different width bag making machine, the ultrasonic is different.

Standard type have two 300mm ultrasonic;

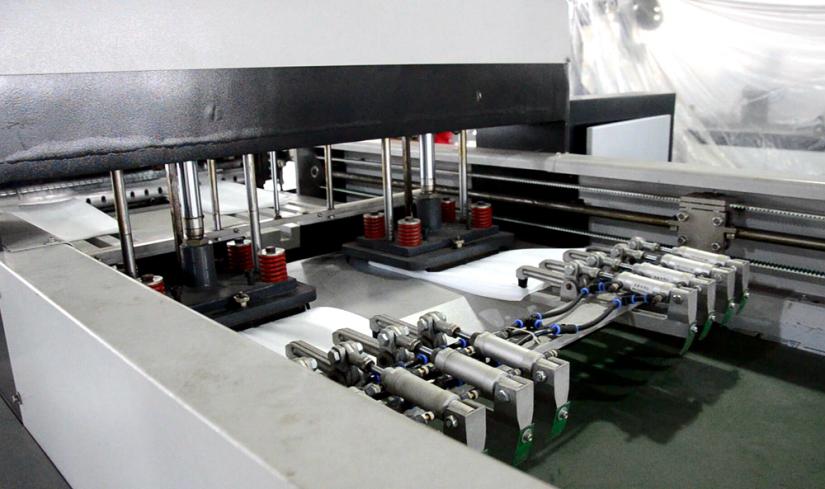

Bag Cut And Grab

The grab time can adjust by computer, according to the bag thickness and quantity.



General one time 10 pcs T-shirt bag to punching together.



Bag Mouth Punching

Function: Punching the bag mouth
You can change the mould according the bag you plan to make

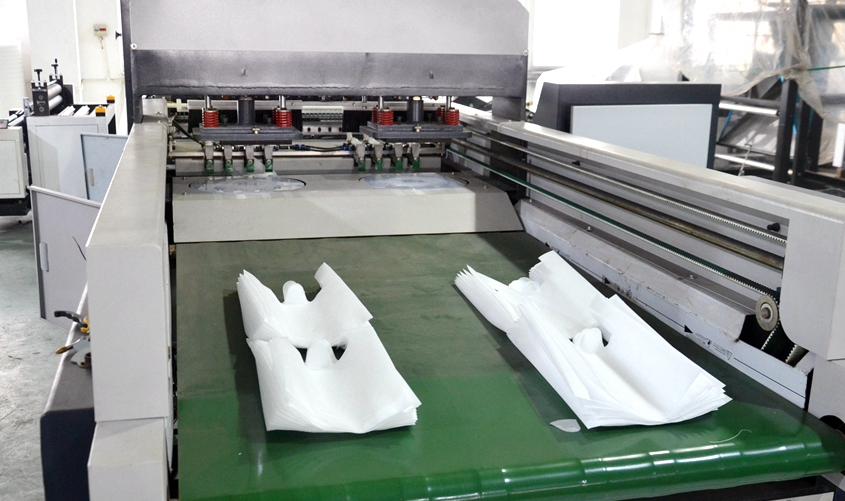

Bag Convey

More easy collect for produce continually

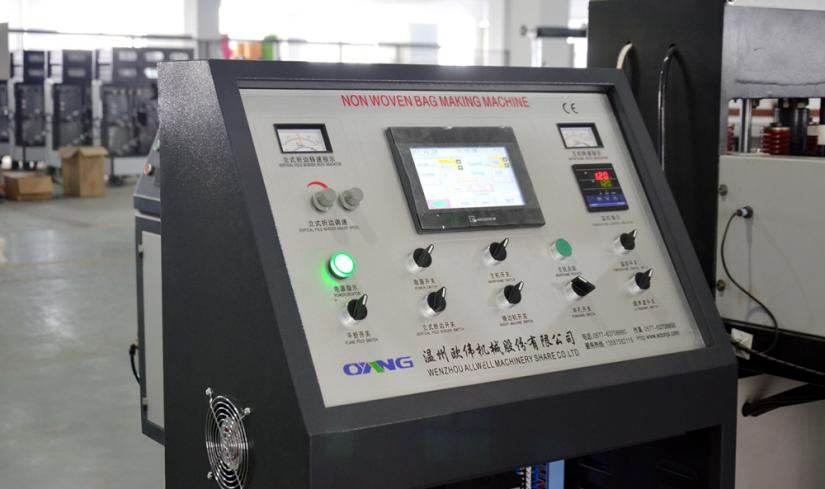

Operation Computer

Name: Touch Screen, PLC
Brand: VENINEW
Original: TAIWAN



  Container

The following is OUR load container info fo

ONL-DT Bag Making Machine. Special

data  would be supply after confirm your order.

.


Weight


3700KG

 Packaging

   Details


Pearl cotton with plastic film.Wooden pallet also available, protect the goods from the strain of long sea voyage . One 40 ft container



Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
