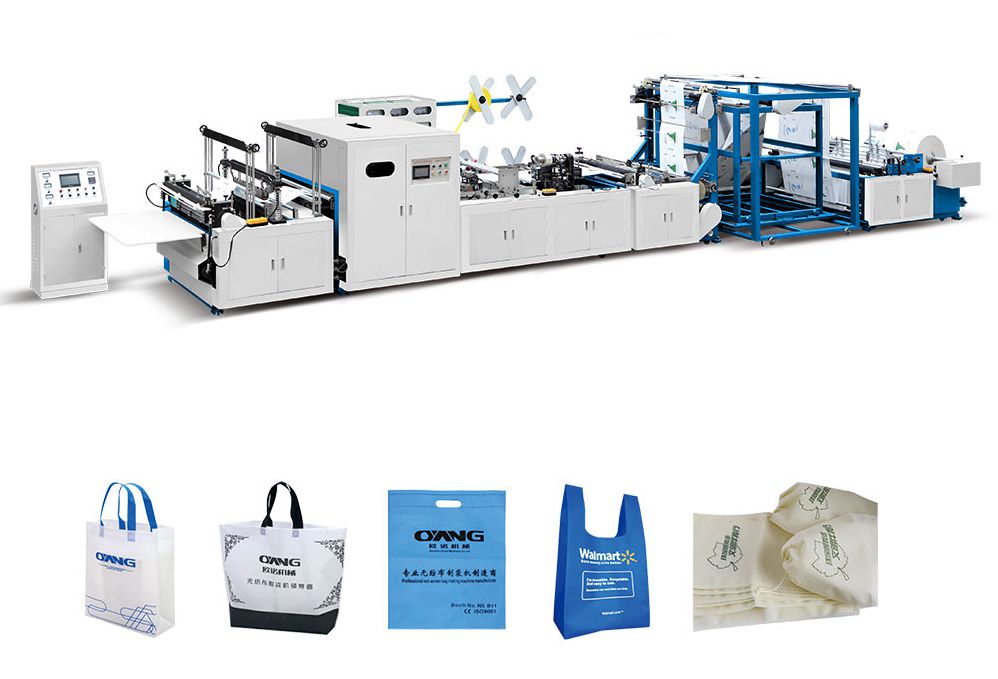

ONL-XB Non Woven Bag Making Machine

home/products/ONL-XB Non Woven Bag Making Machine

ONL-XB Non Woven Bag Making Machine

ONL-XB Non Woven Bag Making Machine Product Application:

Download DOC




Product Application

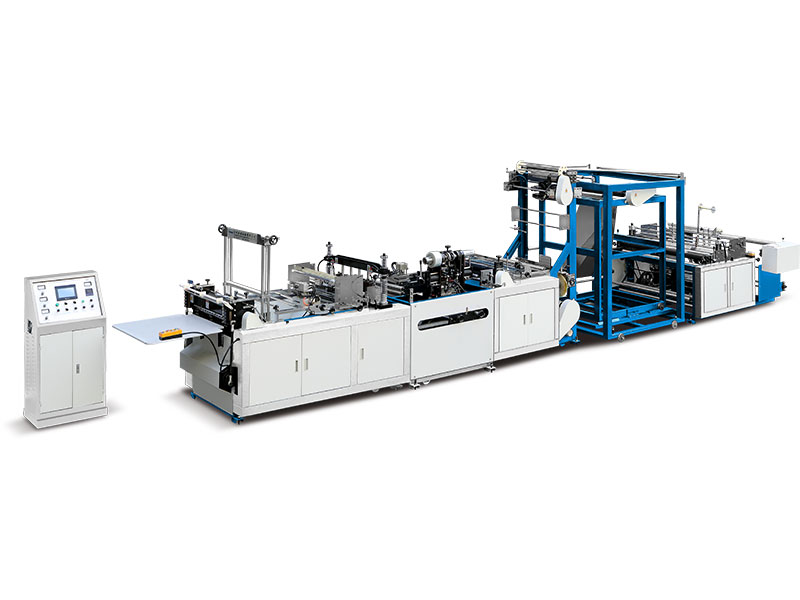

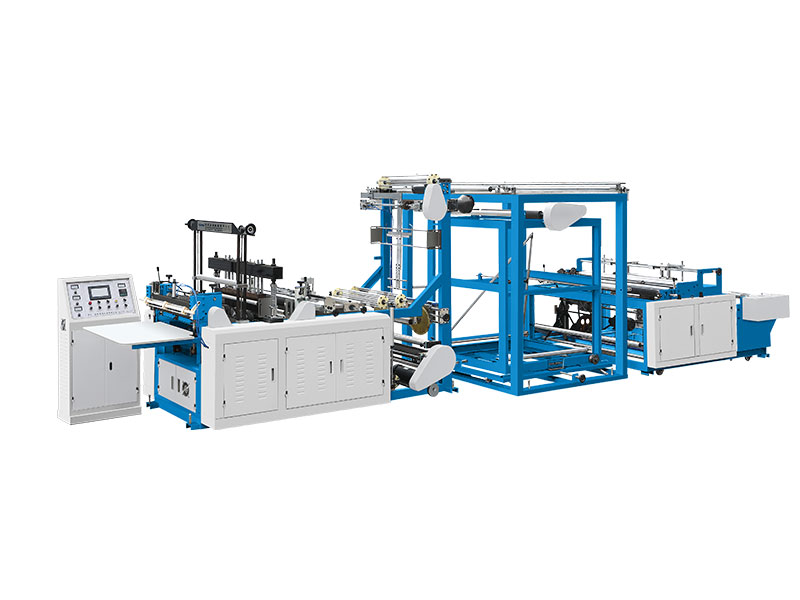

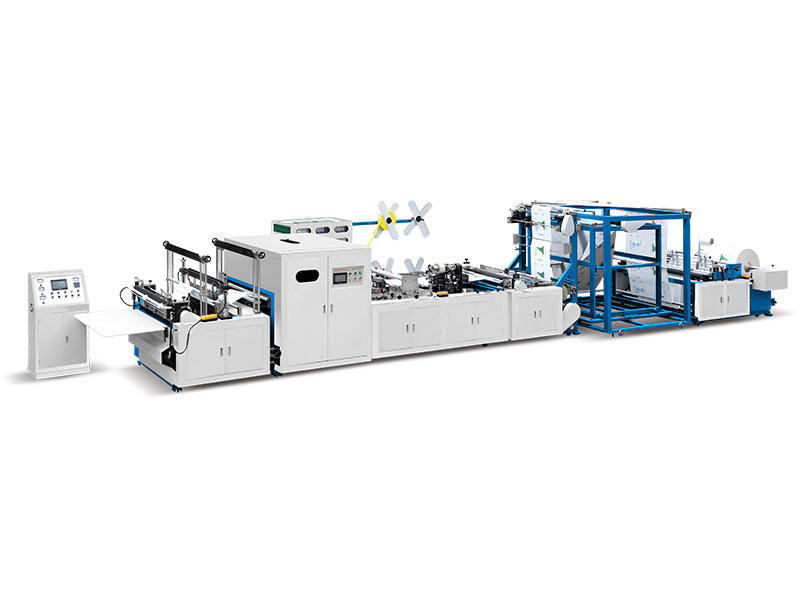

ONL-XB700 Non Woven Box Bag Making Machine

This machine is suitable for PP non woven fabric, regeneration non woven fabric,lamination non woven fabric etc. It using non woven fabric roller to produce non woven bag automatically.


Type

ONL-XB700

ONL-XB800

More Wide Can Be Customized

Fabric Thickness

35-100GSM

35-100GSM

More thin or thick tell us please

Loop Handle Thickness

60-120GSM

60-120GSM



Power Supply

220V 50Hz

220V 50Hz

Can change according your factory

Total Power

18KW

22KW



Overall Size

12000X2600X2000MM

12000X2700X2000MM





Bag Type - Leader can make

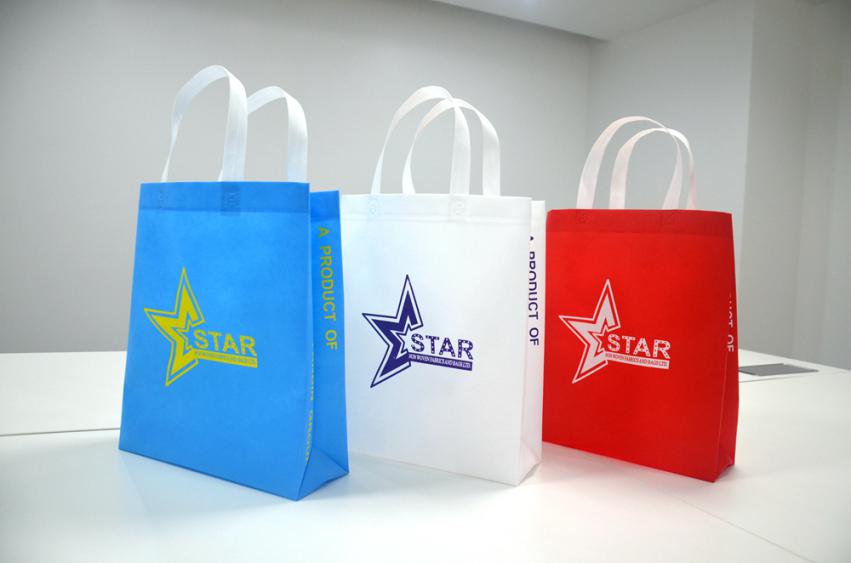

Non Woven Handle Bag (making online)

Bag Length: 300-800 mm
Bag High: 200-580 mm
Bag Gusset: 0-80 mm

Handle Length: 390-600 mm
Handel Width: 50-60 mm

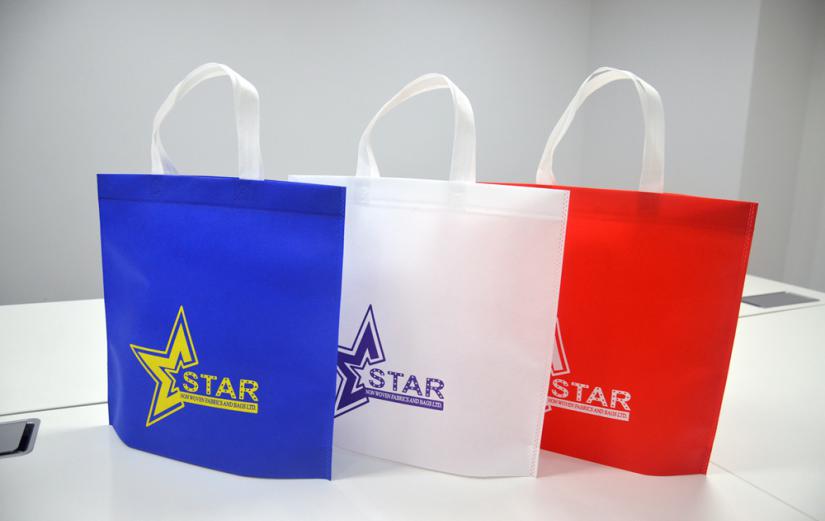

   Non Woven Handle Bag (making online)

   Handle bag with or without bottom
   Bag Length: 300-800 mm
   Bag High: 200-580 mm
   Bottom Gusset: 0-80 mm
   Handle Length: 390-600 mm
   Handle Width: 50-60 mm

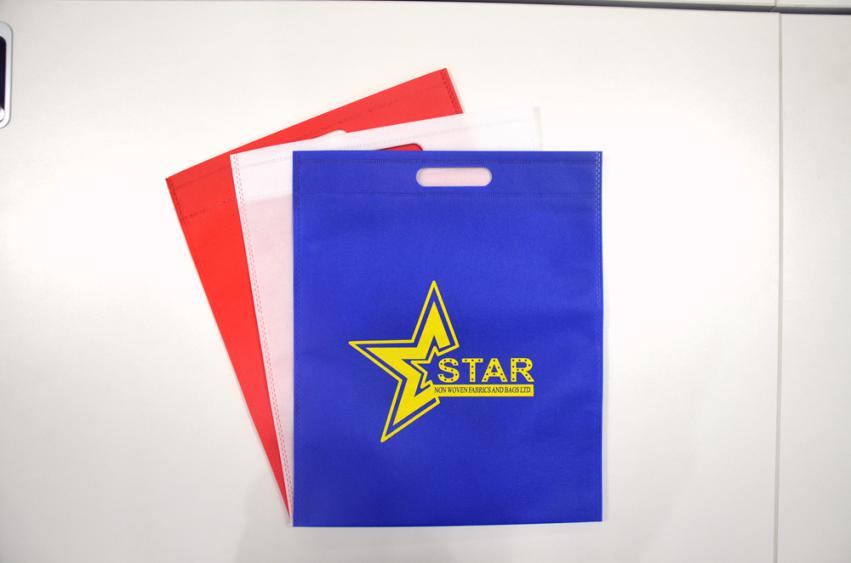

Non Woven D-cut Bag (making online)


D-cut bag with or without bottom


Bag Length: 100-800 mm
Bag High: 200-580 mm
Bottom Gusset: 0-80 mm









Non Woven Shoes Bag (making online)


Shoes bag also named drawstring bag

Bag Length: 100-800 mm
Bag High: 200-580 mm

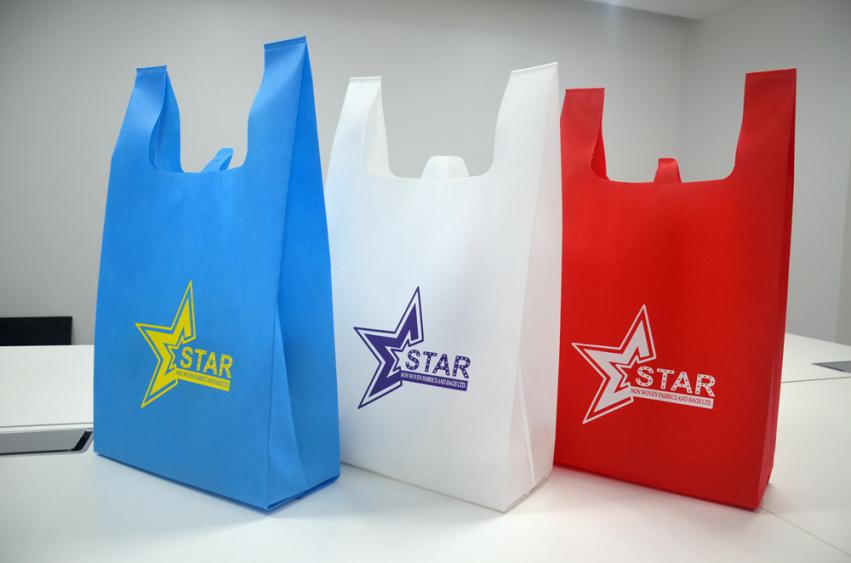

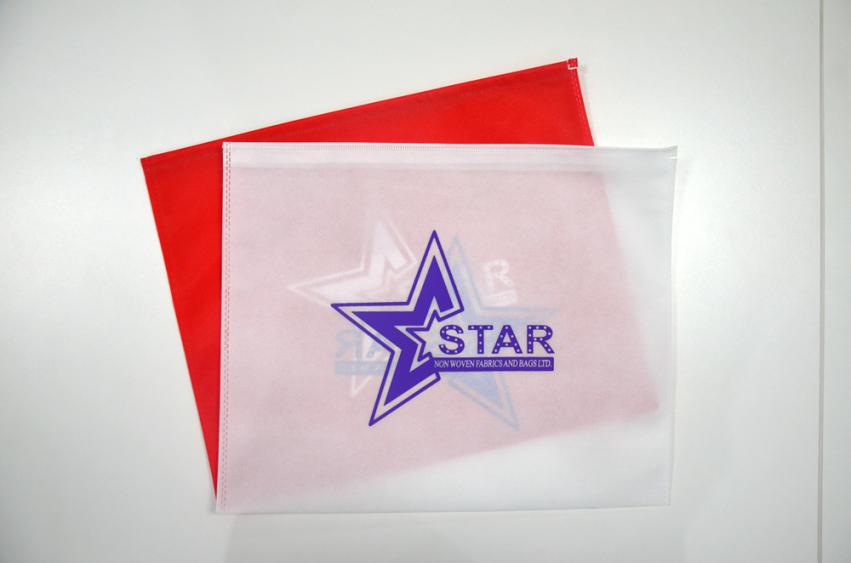

T-shirt Bag (need make separately)

need extra mouth punching machine


Bag Length: 10-500 mm
Bag High: 100-800 mm
Bag Gusset: 0-80 mm

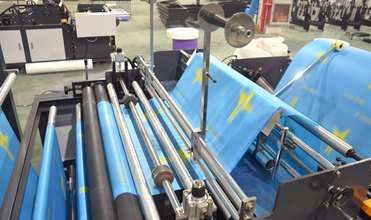

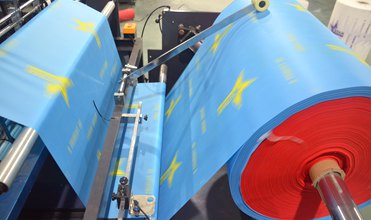

Feeding Part

Function: Automatic loading, magnetic power tension controller, Automatic correcting deviation system.

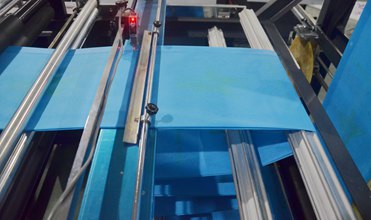

Mouth Fold And Sealing

Function: Fold part can adjust, One side one ultrasonic part
Brand: Ounuo
Original: Ourselves

This Part have two ultrasonics which would keep working when you making all kind of bag except T-shirt bag.

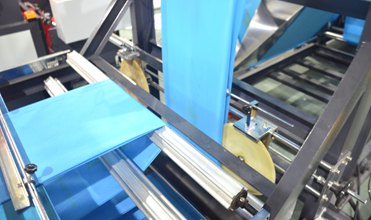

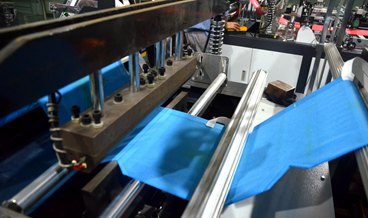

Bag Side Folding Part

Function: This part is for fabric fold, for different type bag making, the pull through way is different.

Our engineer would teach you the way when machine install




Bag Bottom Gusset Part

Function: For box bag, handle bag, D-cut bag making, this part is for bag bottom finish. For T-shirt bag making, this part is for bag side gusset finish.

This Part have one ultrasonic which would working

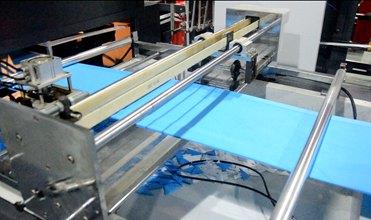

Photoelectric Tracking

Function: This part is for the picture check on the non woven fabric to ensure your bag making accurate.

Allwell Bag Making Machine would stop if the check eye miss the picture.





Box Finish

Function: This part would been used when you making box bag type.
Consumable: PET Film to heat insulation.
Normal one roller can make more than
20000 box bag, more energy-efficient than two ultrasonic


This Part have one ultrasonic which would working when you making box bag.




Online Corsscut

Function: This part would been used when you making box bag type

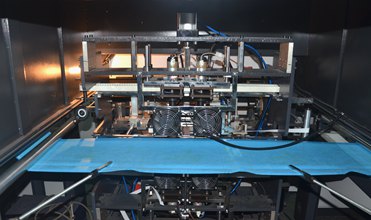

Online Handle Sealing

Function: Using narrow non woven fabric roller to make loop handle and attached on the bag online.

Length of handle can be adjust by the touch screen computer, more convience.

This Part have six ultrasonics which would working when you making handle bag and box bag.






Bag Side Sealing

Function: Using Ounuo made ultrasonic to seal bag side.
Different width bag making machine, the ultrasonic is different.

700 model have
two ultrasonics;
800 model have
three ultrasonics.

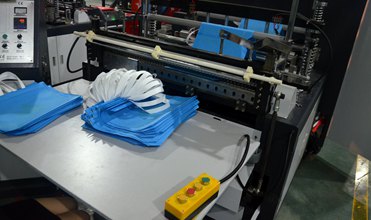

Cut And Collect

Function: cuting the bag one by one and collect, then pack these goods.

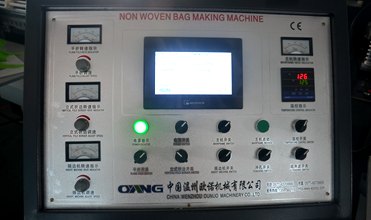

Operation Computer

Name: Touch Screen, PLC
Brand: VENINEW
Original: TAIWAN



Packaging


Container

One 40'ft container and one 20'ft

container


Weight


4400KG

 Packaging

   Details


Pearl cotton with plastic film.

 Wooden pallet also available, protect the goods from the strain of long sea voyage





Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
