ONL-XA Non Woven Bag Making Machine

home/products/ONL-XA Non Woven Bag Making Machine

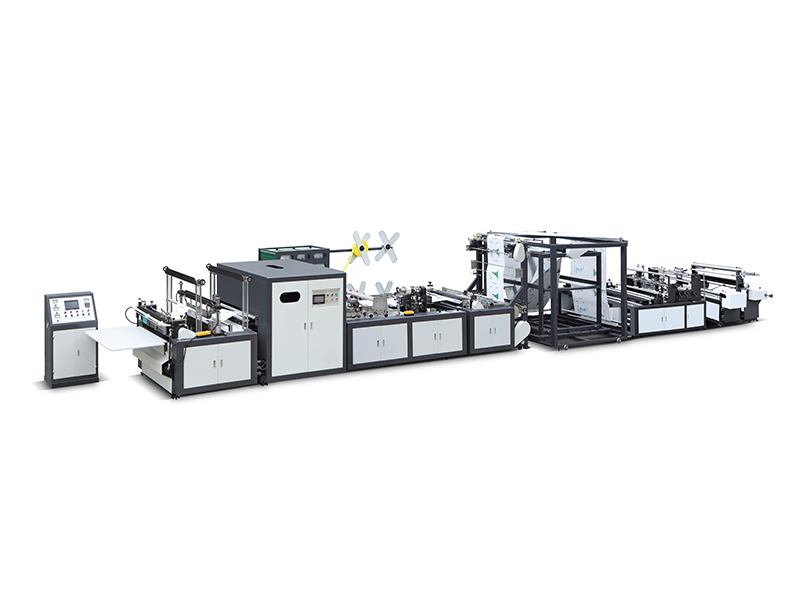

ONL-XA Non Woven Bag Making Machine

ONL-XA Non Woven Bag Making Machine Product Application:

Download DOC


Product Application

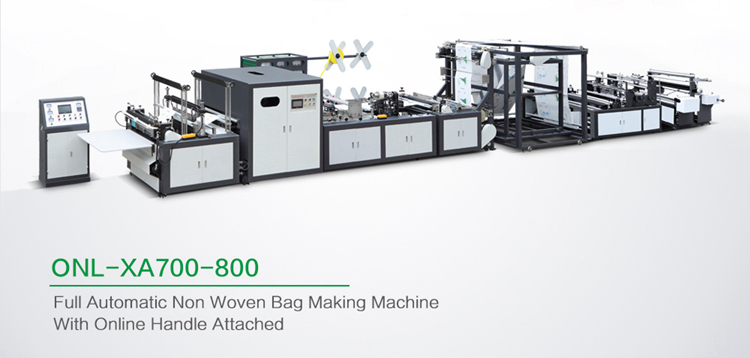

ONL-XA700 Non Woven Box Bag Making Machine With Online Handle Attach

This machine is suitable for PP non woven fabric, regeneration non woven fabric,lamination non woven fabric etc. It using non woven fabric roller to produce non woven bag automatically.

Type

ONL-XA700

ONL-XA800

More Wide Can Be Customized

Fabric Thickness

35-100GSM

35-100GSM

More thin or thick tell us please

Loop Handle Thickness

60-120GSM

60-120GSM



Power Supply

220V 50Hz

220V 50Hz

Can change according your factory

Total Power

18KW

22KW



Overall Size

12000X2600X2000MM

12000X2700X2000MM

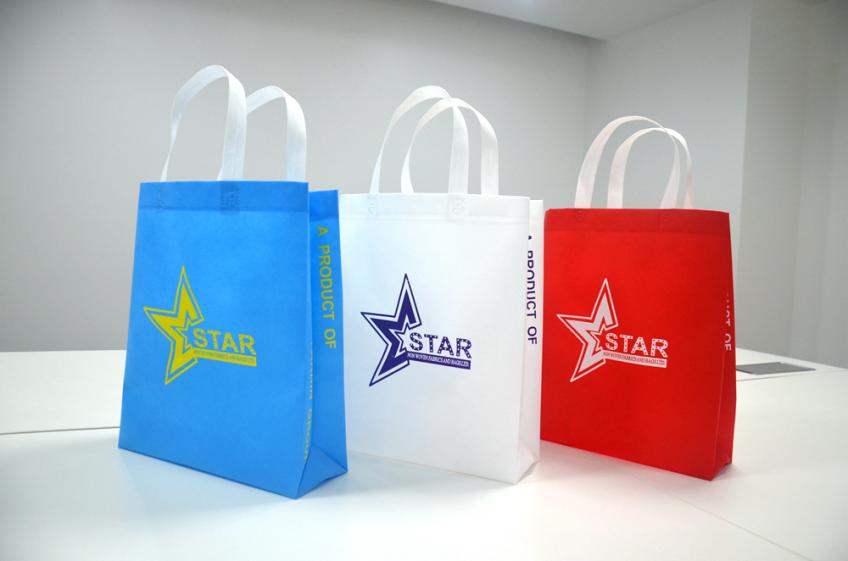

Bag Type - ONL-XA model can make


     Non Woven Box Bag (making online)

      Bag Length: 300-800 mm
      Bag High: 200-580 mm
      Bag Gusset: 0-180 mm

      Handle Length: 390-600 mm

      Handel Width: 50-60 mm

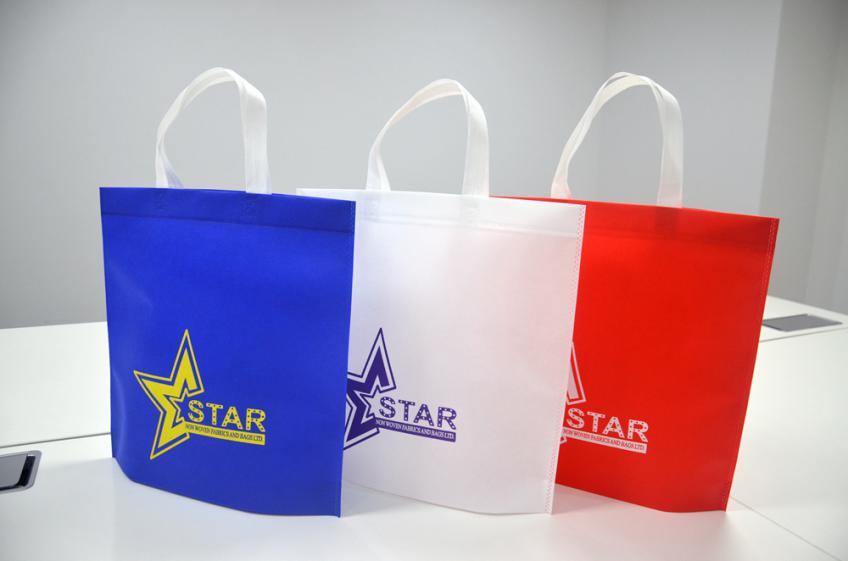

 Non Woven Handle Bag (making online)

 Handle bag with or without bottom
 Bag Length: 300-800 mm
 Bag High: 200-580 mm
 Bottom Gusset: 0-180 mm
 Handle Length: 390-600 mm
 Handle Width: 50-60 mm

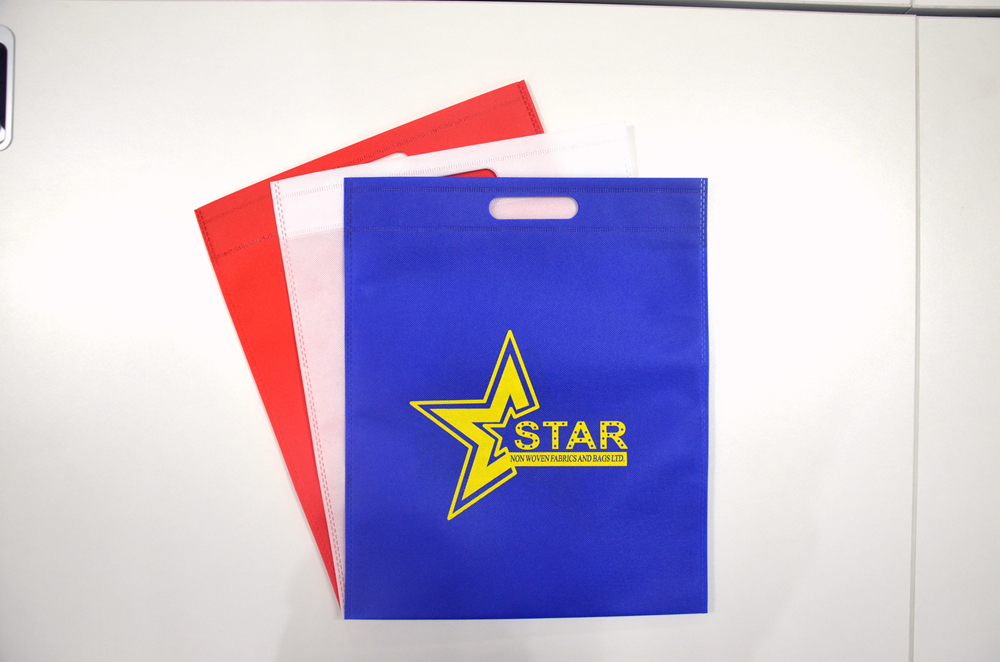

  Non Woven D-cut Bag (making online)

  D-cut bag with or without bottom
  Bag Length: 100-800 mm
  Bag High: 200-580 mm
  Bottom Gusset: 0-180 mm



  Non Woven Shoes Bag (making online)

  Shoes bag also named laundry bag

  Bag Length: 100-800 mm

  Bag High: 200-580 mm

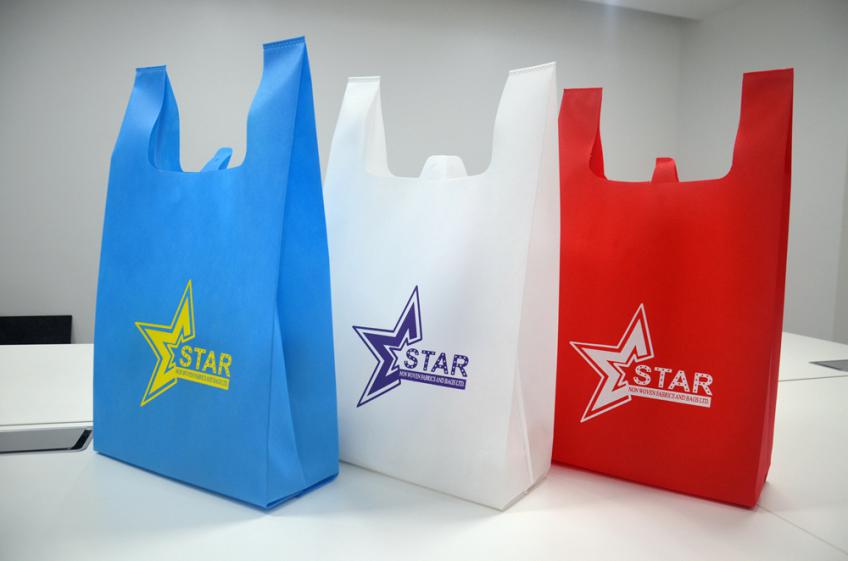

  T-shirt Bag (need make separately)

  need extra mouth punching machine
  Bag Length: 260-380 mm
  Bag High: 100-800 mm
  Bag Gusset: 0-180 mm

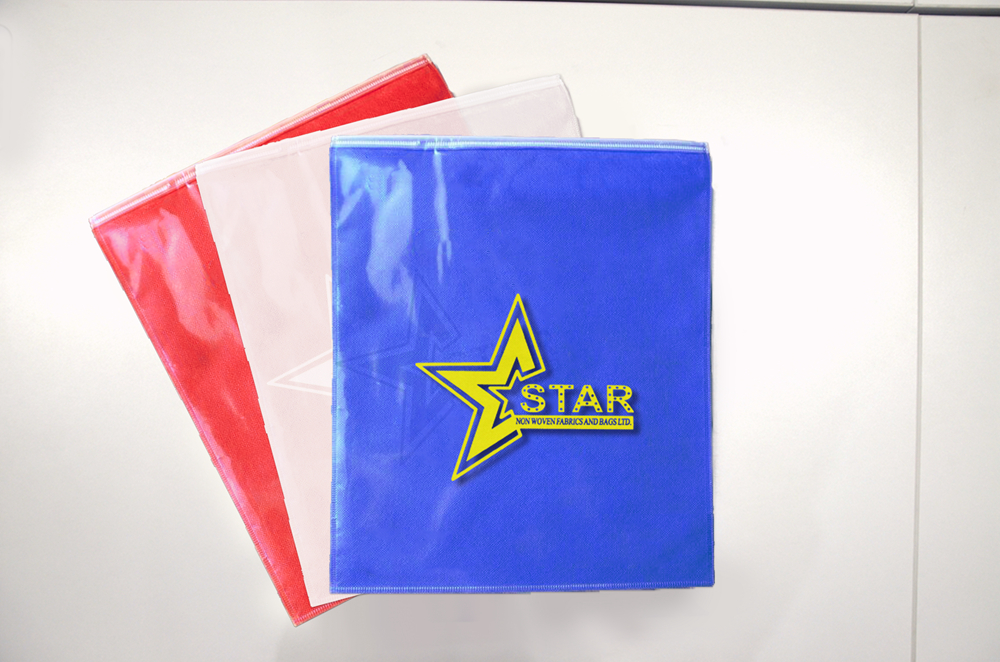

   Zipper Bag (making online)

    zipper lock need install by manual

    Bag Length: 100-800 mm
    Bag High: 200-580 mm

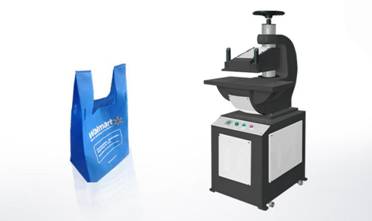

Hydraulic Pressure Punching Machine (30-50pcs.min)

Automatic T-shirt Punching Machine(20-30pcs.min)




   About Speed

Bag Type

Box Bag

Handle Bag

D-cut Bag

Shoes Bag

T-shirt Bag

Zipper Bag

Speed (pcs/min)

35-60

35-80

60-100

60-100

30-50

60-100

Detailed Images

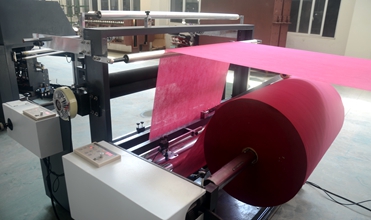

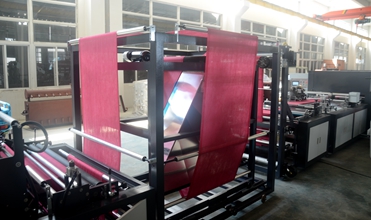

Double Feeding Part

Mouth Fold And Sealing

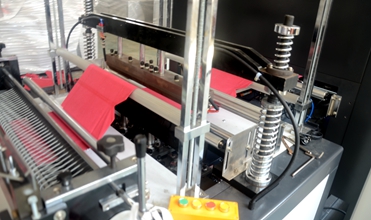

Bag Side Folding Part

For fabric fold, for different type bag making, the pull throughway is different.

Bag Bottom Gusset Part

For bag side or bottom gussetOne ultrasonic working while making T-shirt bag.

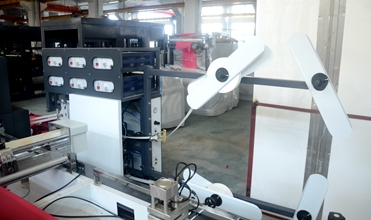

Soft Handle Feeding Part

Four feeding part

Box Finish

Running when making box bag type.
Consumable: PET Film to heat insulation.
Normal one roller can make m
ore than 20000 box bag, more energy-efficient than two ultrasonic

This Part have one ultrasonic which would working when you making box bag.

Online Corsscut

Running when you making box bag.

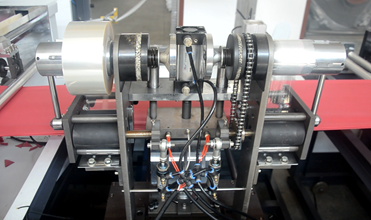

Online Handle Sealing

Length of handle can be adjust by the touch screen computer, more convenience.
This Part have
six ultrasonic which would working when you making handle bag and box bag.

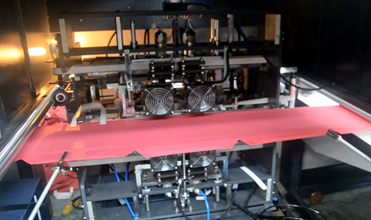

Bag Side Sealing

Function: Using Ounuo made ultrasonic to seal bag side.
Different width bag making machine, the ultrasonic is different.

700 model have
two ultrasonic;
800 model have
three ultrasonic.

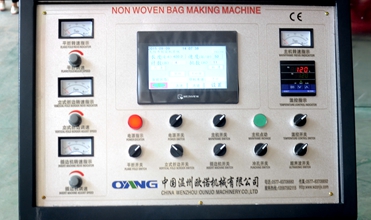

Operation Computer

Name: Touch Screen, PLC
Brand: VENINEW
Original: TAIWAN



One 40'ft container and one 20'ft container



Weight


4500KG

 Packaging

   Details


Pearl cotton with plastic film.

 Wooden pallet also available, protect the goods from the strain of long sea voyage







Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
