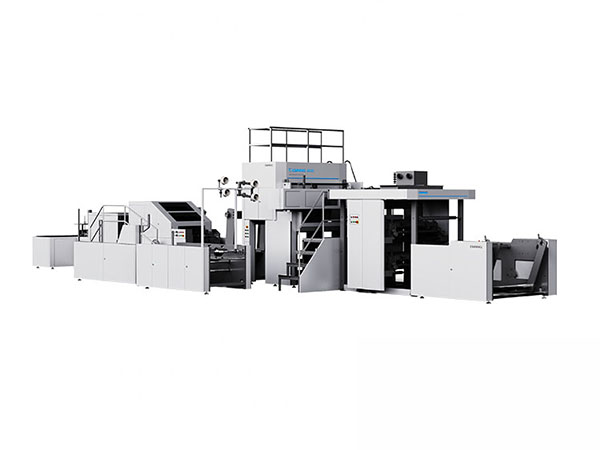

Smart 17 - NEW WORLD A SERIES Automatic Roll-fed Twist Rope Paper Bag Machine

Smart 17 - NEW WORLD A SERIES Automatic Roll-fed Twist Rope Paper Bag Machine Product Application:

Download DOC

Product Description

NEW WORLD - A series machine is designed to manufacture square bottom paper bags with handles from paper roll,paper patch roll and paper rope,and it is an ideal equipment for producing paper handbags fast.By implementing steps including handle making. handle application,tube forming,tube cutting and bottom forming within a fully automatic process,this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length,so as to ensure cutting precision. Adjustable dual-moulds structure,ensure that the machine can perform quickly and stably,as well as reduce adjusting time for different bag sizes.Special bags collection platform and counting function,improve packing efficiency of finished paper bags.Thanks to perfect technologies and fast production speed,this machine can produce paper handbags with high quality in many different forms,which are especially suitable for food and clothing industries.

Product Advantages

1. Save investment costs

2. Save land area

3. Improve the ability to receive orders

4. High degree of machine intelligence

5. Stable production

6. One-time molding of finished products

Product Parameter

Model No.	A220	A330	A 400	A450	A460	A560
Paper diameter	≤1500mm	≤1500mm	≤1500mm	≤1500mm	≤1500mm	≤1500mm
Core inner diameter	φ76mm	φ76mm	φ76mm	φ76mm	φ76mm	φ76mm
Paper weight	70-140gsm	80-140gsm	80-140gsm	80-140gsm	80-140gsm	90-140gsm
Paper bag width	120-220mm	200-330mm	200-400mm	200-450mm	240-460mm	280-560mm
	80-220mm	150-330mm	150-400mm	150-450mm	220-460mm	280-560mm
Paper tube length	190-350mm	280-430mm	280-550mm	280-550mm	320-650mm	320-650mm
	190-430mm	280-530mm	280-600mm	280-600mm	320-770mm	320-770mm
Bottom width of paper bag	50-120mm	80-180mm	90-200mm	90-200mm	90-260mm	90-260mm
Paper roll width	290/370-710mm	490/590-1050mm	510/610-1230mm	510/610-1230mm	650/690-1470mm	770-1670mm
Machine Speed	150pcs/min	150pcs/min	150pcs/min	150pcs/min	130pcs/min	100pcs/min
Total power	32KW	32KW	34KW	34KW	34KW	34KW
Machine weight.	13000KG	16000KG	18000KG	18000KG	21000KG	22000KG
Machine dimensions	L12×W5×H3.2M	L14×W6×H3.5M	L15×W6×H3.5M	L15×W6×H3.5M	L16×W6×H3.5M	L16×W6×H3.5M

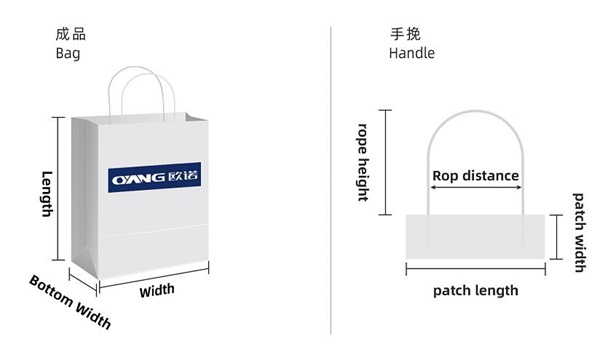

Handle Machine Parameters

Model No.	2HD	3HD	5HD	6HD
Handle rope height	90-110	90-110	95-115	100-120
Handle patch width	40-50	45-50	45-50	45-50
Handle patch length	95	114	152	190
Handle rope diameter	φ3-5mm	φ4-6mm	φ4-6mm	φ4-6mm
Diameter of Handle Patch Paper Roll	φ1200mm	φ1200mm	φ1200mm	φ1200mm
Handle patch paper roll width	80-100mm	90-100mm	90-100mm	90−100mm
Handle patch weight	100-140g	100-140g	100-140g	100-140g
Handle separation distance	47	57	76	95

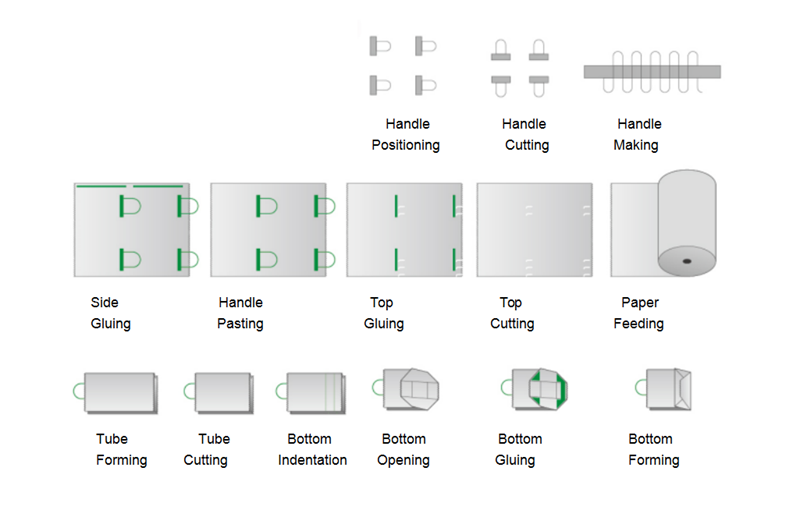

Bag Making Process

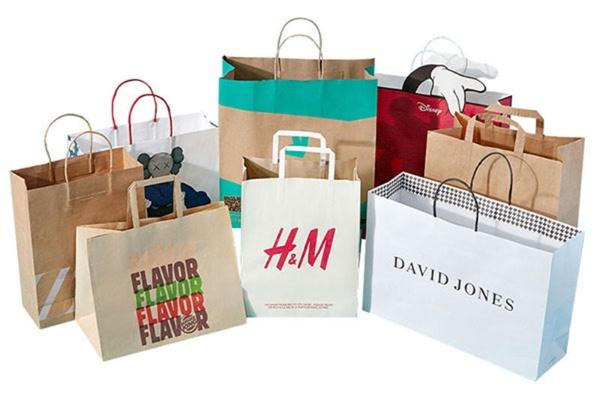

Bag Type
