Product Description

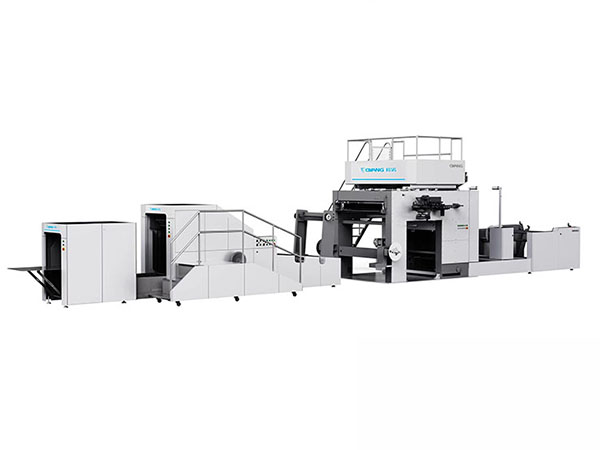

NEW WORLD - AS series machine is designed to manufacture square bottom paper bags with flat-rope handles from paper roll,paper patch roll and flat handle paper roll,and it is an ideal equipment for producing paper handbags fast. By completing the steps of handlebar production, handlebar adhesion, paper tube forming, paper cutting, and bag bottom forming in one go, this machine truly realizes fully automated production and can effectively save labor costs. The unique flat rope handle manufacturing process and special finished product counting function effectively improve the efficiency of users' batch packaging of finished products.
Product Advantages
1. Save transportation space for finished products
2. Save 50% of patch paper

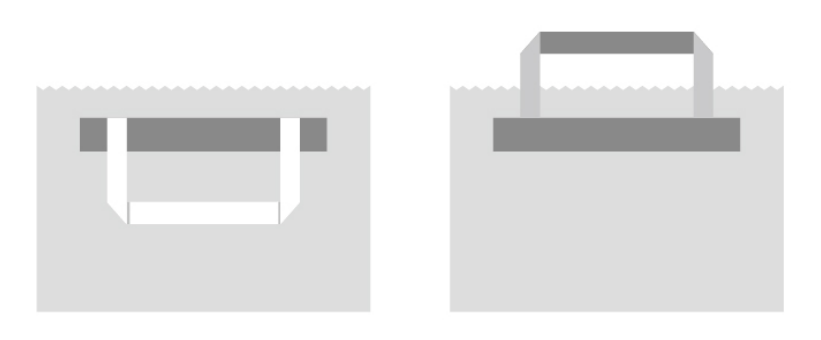

3. Realize flat rope folding inward or outward on the same machine
4. Reduce labor costs
5. Easy to operate
Product Parameter
|
Model No. |
AS 330 |
AS 400 |
AS 450 |
AS 460 |
AS 560 |
|
Paper diameter |
≤1500mm |
≤1500mm |
≤1500mm |
≤1500mm |
≤1500mm |
|
Core inner diameter |
φ76mm |
φ76mm |
φ76mm |
φ76mm |
φ76mm |
|
Paper weight |
80−140gsm |
80−140gsm |
80-140gsm |
90-140gsm |
90-140gsm |
|
Paper bag width |
200-330mm |
200-400mm |
200-450mm |
220-460mm |
280-560mm |
|
|
150-330mm |
150-400mm |
150−450mm |
220-460mm |
280-560mm |
|
Paper tube length |
280-430mm |
280-550mm |
280-550mm |
320-670mm |
320-670mm |
|
|
280-530mm |
280-600mm |
280-600mm |
320-770mm |
320-770mm |
|
Bottom width of paper bag |
80-180mm |
90-200mm |
90−200mm |
90-260mm |
90-260mm |
|
Paper roll width |
490/590-1050mm |
510/610-1230mm |
510/610-1230mm |
650-1470mm |
770-1670mm |
|
Flat Handle Rope Height |
75mm |
75mm |
75mm |
100mm |
100mm |
|
Flat Handle Rope Width |
12mm |
12mm |
12mm |
16mm |
16mm |
|
Paper Rope Roll Width |
85mm |
85mm |
85mm |
95mm |
95mm |
Bag Type
Food bag:leisure food bag,baking bag,nuts fried bag,subsidiary food bag,fruit bag,baby products bag,etc.
Gift bag:candy ,tea wine etc.
Take away bag:shopping bag,cloth bag,taking away food bag
Product Advantages
1. Save transportation space for finished products
2. Save 50% of patch paper
3. Realize flat rope folding inward or outward on the same machine
4. Reduce labor costs
5. Easy to operate
