Product Description

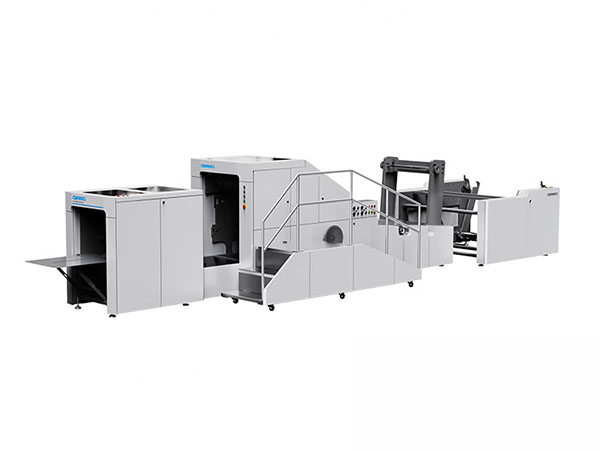

NEW WORLD - B series machine is designed to manufacture square bottom paper bags without handles from paper roll,and it is an ideal equipment for producing producing various sized paper bags fast. By implementing steps including paper feeding,tube forming,tube cutting and bottom forming inline,this machine can effectively save labor costs. The equipped photoelectric detector can correct cutting length,so as to ensure cutting precision. This machine can process very thin paper,as well as produce paper bags very fast,thus this machine is especially suitable for being applied in food industries.
Product Advantages
1. Save land area
2. Suitable for thin paper
3. High production efficiency
4. Stable machine operation
5. Can make different bag bottoms
6. Wide range of bag making dimensions
Product Parameter
|
Model No. |
B220 |
B330 |
B400 |
B 450 |
B 460 |
B560 |
|
Paper Bag Length |
190-430mm |
280-530mm |
280-600mm |
280-600mm |
320-770mm |
320-770mm |
|
Paper Bag Width |
80-220mm |
150-330mm |
150-400mm |
150-450mm |
220-460mm |
280-560mm |
|
Paper Bag Bottom Width |
50−120mm |
70-180mm |
90-200mm |
90-200mm |
90-260mm |
90-260mm |
|
Paper Thickness |
45-150g/ |
60-150g/㎡ |
70-150g/ |
70-150g/ |
70-150g/ |
80-150g/ |
|
Machine Speed |
280pcs/min |
220pcs/min |
200pcs/min |
200pcs/min |
150pcs/min |
150pcs/min |
|
Paper Roll Width |
290-710mm |
470-1050mm |
510-1230mm |
510-1230mm |
650-1470mm |
770-1670mm |
|
Roll Paper Diameter |
≤1500mm |
≤1500mm |
1300mm |
≤1500mm |
≤1500mm |
≤1500mm |
|
Machine Power |
380V15kw |
380V8kw |
380V15.5kw |
380V 15.5kw |
380V 25kw |
380V 27kw |
|
Machine Weight |
5600kg |
8000kg |
9000kg |
9000kg |
12000kg |
13000kg |
|
Machine Size |
L8.6×W2.6×H1.9M |
L9.5×W2.6×H1.9M |
L10.7×W2.6×H1.9M |
L10.7×W2.6×H1.9M |
L12×W4×H2M |
L13×W2.6×H2M |

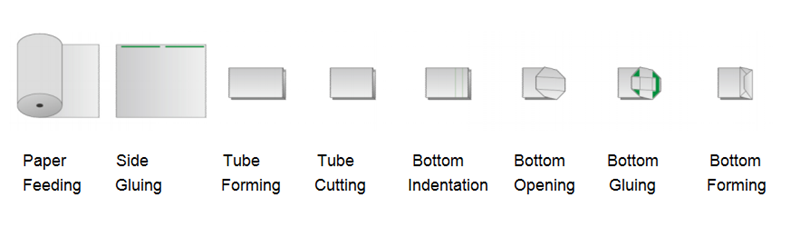

Bag Making Process

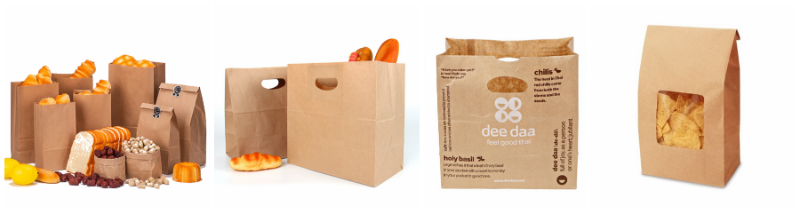

Bag Type
Shopping Bag, Clothing Bag, Food Bag, Gift Bag, Take Away Bag
Product Advantages
1. Save land area
2. Suitable for thin paper
3. High production efficiency
4. Stable machine operation
5. Can make different bag bottoms
6. Wide range of bag making dimensions
Zhejiang Ounuo Machinery Co,Ltd. is a professional manufacturer of supporting equipment such as paper packaging equipment, paper product equipment and non woven fabric industry chain. We are located in Pingyang County, Wenzhou City, Zhejiang Province, covering an area of 130000 square metres, 17 years deep ploughing in packaging equipment industry. Since its establishmentthe company has been market-oriented, relying on science and technology and vigorously developing new products. Invest 200 million imported of Japan MAZAK, OKUMA, Taiwan WELLE etc, the high-precision CNC Machine, to ensure the precision of the components and the stability of the whole machine.
Ounuo's Misson: Industry Is Keeping Change Because of Us
Ounuo's Vision (10-15 Years): Responsibility to Promotion Solution of Top Quality and Intelligent Bag Making Industry. Keep in mind the mission and vision and strive to provide world. Our R&D team merges the advanced philosopy to practice and succeeds in applying to the related products The excellent quality and performance of our product originates from our long-term and continuous test and improvement.
