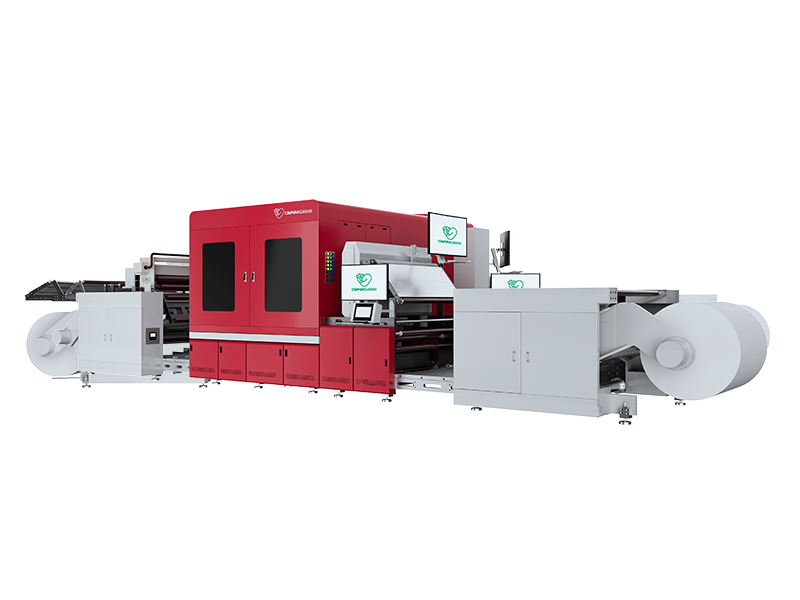

DPIM-850-4 UV Inkjet Digital Printing Machine

Specification规格

DPIM-850-4

Printing Material印刷材料

Non-laminated non woven fabric roll

Laminated non woven fabric roll

Paper roll

Max resolution分辨率

600*600dpi/ 1200*600dpi

Printing Speed印刷速度

20m~60m

Material width range材料宽幅范围

20mm~330mm

Max feed width进纸最大宽幅

900mm

Printing width印刷最大宽幅

850mm

Material thickness材料厚度

0.02~0.5mm

Ink type墨水类型

UV Ink

Ink color configuration颜色配置

Standard mode is CMYK

Max winding/unwinding最大收放卷直径

1000mm

Max unwinding load最大承重

1500KG

Material transfer材料传输

Servo control for rewinding and unwinding

Relative humidity相对湿度

40％ - 60％ (No condensation)

Ambient temperature 环境温度

20℃ - 26℃

Power功率

200KW

Power requirements用电要求

AC380V/50Hz/320A

Air source气源

0.6~0.8Mpa

Weight重量

15000KG

Size尺寸

11200mm*3400mm*2300mm
